1. Product Fundamentals and Microstructural Style
1.1 Structure and Crystallographic Security of Alumina
(Alumina Ceramic Nozzles)
Alumina (Al Two O SIX), specifically in its alpha phase, is a fully oxidized ceramic with a corundum-type hexagonal close-packed structure, offering outstanding thermal security, chemical inertness, and mechanical strength at elevated temperatures.
High-purity alumina (normally 95– 99.9% Al ₂ O SIX) is preferred for nozzle applications as a result of its marginal contamination content, which reduces grain boundary weakening and enhances resistance to thermal and chemical destruction.
The microstructure, containing penalty, equiaxed grains, is engineered throughout sintering to lessen porosity and optimize thickness, directly affecting the nozzle’s erosion resistance and structural stability under high-velocity liquid circulation.
Ingredients such as MgO are often presented in trace amounts to prevent unusual grain development throughout sintering, making sure an uniform microstructure that supports long-lasting reliability.
1.2 Mechanical and Thermal Features Relevant to Nozzle Efficiency
Alumina ceramics display a Vickers hardness exceeding 1800 HV, making them highly resistant to unpleasant wear from particulate-laden liquids, a vital quality in applications such as sandblasting and rough waterjet cutting.
With a flexural stamina of 300– 500 MPa and a compressive toughness over 2 GPa, alumina nozzles maintain dimensional stability under high-pressure procedure, commonly varying from 100 to 400 MPa in industrial systems.
Thermally, alumina preserves its mechanical residential or commercial properties as much as 1600 ° C, with a reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) that gives excellent resistance to thermal shock– important when subjected to quick temperature fluctuations throughout startup or closure cycles.
Its thermal conductivity (~ 30 W/m · K) is sufficient to dissipate localized warm without causing thermal gradients that could bring about breaking, balancing insulation and warm management demands.
2. Manufacturing Processes and Geometric Precision
2.1 Shaping and Sintering Methods for Nozzle Fabrication
The production of alumina ceramic nozzles begins with high-purity alumina powder, which is refined right into a green body using approaches such as cold isostatic pressing (CIP), shot molding, or extrusion, depending on the wanted geometry and batch dimension.

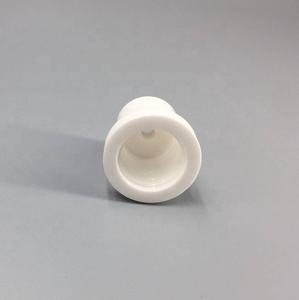

( Alumina Ceramic Nozzles)
Cold isostatic pressing uses uniform stress from all directions, generating an uniform density circulation important for lessening issues throughout sintering.
Injection molding is used for complex nozzle shapes with internal tapers and great orifices, permitting high dimensional accuracy and reproducibility in mass production.
After forming, the green compacts undertake a two-stage thermal treatment: debinding to get rid of natural binders and sintering at temperature levels in between 1500 ° C and 1650 ° C to accomplish near-theoretical thickness via solid-state diffusion.
Exact control of sintering ambience and heating/cooling rates is vital to stop bending, cracking, or grain coarsening that could compromise nozzle performance.
2.2 Machining, Sprucing Up, and Quality Assurance
Post-sintering, alumina nozzles usually require accuracy machining to attain tight tolerances, particularly in the orifice area where flow characteristics are most conscious surface finish and geometry.
Diamond grinding and splashing are made use of to improve interior and outside surfaces, achieving surface area roughness worths below 0.1 µm, which lowers circulation resistance and prevents bit accumulation.
The orifice, usually ranging from 0.3 to 3.0 mm in size, need to be without micro-cracks and chamfers to make certain laminar circulation and regular spray patterns.
Non-destructive screening approaches such as optical microscopy, X-ray assessment, and pressure biking tests are used to verify architectural stability and efficiency consistency prior to deployment.
Custom-made geometries, including convergent-divergent (de Laval) accounts for supersonic flow or multi-hole arrays for follower spray patterns, are progressively fabricated making use of sophisticated tooling and computer-aided style (CAD)-driven production.
3. Functional Advantages Over Different Nozzle Materials
3.1 Superior Disintegration and Corrosion Resistance
Contrasted to metallic (e.g., tungsten carbide, stainless steel) or polymer nozzles, alumina exhibits much greater resistance to rough wear, especially in atmospheres involving silica sand, garnet, or various other difficult abrasives made use of in surface area prep work and cutting.
Steel nozzles deteriorate quickly because of micro-fracturing and plastic contortion, needing frequent replacement, whereas alumina nozzles can last 3– 5 times longer, considerably lowering downtime and operational costs.
Furthermore, alumina is inert to the majority of acids, alkalis, and solvents, making it appropriate for chemical spraying, etching, and cleansing processes where metallic parts would certainly rust or infect the fluid.
This chemical security is specifically important in semiconductor manufacturing, pharmaceutical handling, and food-grade applications needing high purity.
3.2 Thermal and Electric Insulation Residence
Alumina’s high electric resistivity (> 10 ¹⁴ Ω · cm) makes it suitable for usage in electrostatic spray finishing systems, where it avoids fee leakage and makes sure consistent paint atomization.
Its thermal insulation capacity permits secure procedure in high-temperature splashing environments, such as fire spraying or thermal cleaning, without heat transfer to surrounding parts.
Unlike metals, alumina does not militarize unwanted chemical reactions in responsive fluid streams, maintaining the honesty of delicate formulations.
4. Industrial Applications and Technical Impact
4.1 Functions in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are important in abrasive blasting systems for corrosion elimination, paint stripping, and surface area texturing in auto, aerospace, and construction markets.
Their capability to preserve a constant orifice diameter over prolonged usage guarantees consistent unpleasant speed and influence angle, directly influencing surface area coating high quality and process repeatability.
In unpleasant waterjet cutting, alumina concentrating tubes guide the high-pressure water-abrasive combination, withstanding abrasive pressures that would rapidly deteriorate softer materials.
4.2 Usage in Additive Production, Spray Finish, and Liquid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles straight high-temperature gas circulations and molten particles onto substratums, taking advantage of their thermal shock resistance and dimensional stability.
They are also used in precision spray nozzles for farming chemicals, inkjet systems, and gas atomization, where wear resistance makes certain long-lasting application accuracy.
In 3D printing, especially in binder jetting and product extrusion, alumina nozzles deliver great powders or viscous pastes with marginal obstructing or use.
Emerging applications consist of microfluidic systems and lab-on-a-chip tools, where miniaturized alumina components offer sturdiness and biocompatibility.
In recap, alumina ceramic nozzles represent a crucial junction of materials scientific research and commercial engineering.
Their extraordinary combination of firmness, thermal security, and chemical resistance allows reliable efficiency in a few of the most requiring liquid handling atmospheres.
As commercial processes press toward higher pressures, finer tolerances, and longer service periods, alumina porcelains remain to set the requirement for sturdy, high-precision circulation control parts.
