1. Crystallography and Polymorphism of Titanium Dioxide
1.1 Anatase, Rutile, and Brookite: Structural and Electronic Distinctions
( Titanium Dioxide)

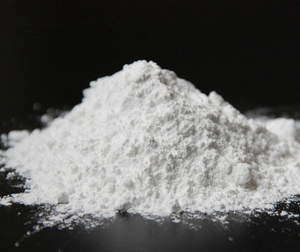

Titanium dioxide (TiO ₂) is a normally happening metal oxide that exists in three key crystalline kinds: rutile, anatase, and brookite, each exhibiting distinct atomic plans and electronic homes despite sharing the exact same chemical formula.
Rutile, the most thermodynamically secure phase, features a tetragonal crystal structure where titanium atoms are octahedrally coordinated by oxygen atoms in a dense, straight chain arrangement along the c-axis, leading to high refractive index and outstanding chemical stability.
Anatase, likewise tetragonal however with an extra open framework, possesses edge- and edge-sharing TiO six octahedra, causing a greater surface area power and higher photocatalytic task because of enhanced cost service provider movement and minimized electron-hole recombination prices.
Brookite, the least typical and most hard to manufacture stage, takes on an orthorhombic structure with complex octahedral tilting, and while much less examined, it shows intermediate residential properties in between anatase and rutile with arising rate of interest in crossbreed systems.
The bandgap powers of these stages differ slightly: rutile has a bandgap of roughly 3.0 eV, anatase around 3.2 eV, and brookite about 3.3 eV, influencing their light absorption features and viability for certain photochemical applications.
Stage stability is temperature-dependent; anatase commonly changes irreversibly to rutile over 600– 800 ° C, a shift that must be controlled in high-temperature processing to maintain desired functional buildings.
1.2 Defect Chemistry and Doping Approaches
The functional versatility of TiO two arises not just from its intrinsic crystallography yet likewise from its ability to suit factor flaws and dopants that modify its electronic framework.
Oxygen vacancies and titanium interstitials serve as n-type contributors, boosting electric conductivity and developing mid-gap states that can affect optical absorption and catalytic activity.
Regulated doping with steel cations (e.g., Fe TWO ⁺, Cr Three ⁺, V ⁴ ⁺) or non-metal anions (e.g., N, S, C) tightens the bandgap by introducing pollutant degrees, allowing visible-light activation– an important innovation for solar-driven applications.
As an example, nitrogen doping changes lattice oxygen sites, developing localized states above the valence band that allow excitation by photons with wavelengths approximately 550 nm, considerably increasing the functional section of the solar range.
These adjustments are essential for overcoming TiO two’s key constraint: its large bandgap limits photoactivity to the ultraviolet region, which comprises only around 4– 5% of case sunshine.
( Titanium Dioxide)
2. Synthesis Approaches and Morphological Control
2.1 Conventional and Advanced Manufacture Techniques
Titanium dioxide can be synthesized via a range of techniques, each offering different levels of control over phase purity, fragment dimension, and morphology.
The sulfate and chloride (chlorination) procedures are large commercial paths made use of mainly for pigment production, involving the food digestion of ilmenite or titanium slag followed by hydrolysis or oxidation to produce great TiO two powders.
For useful applications, wet-chemical methods such as sol-gel processing, hydrothermal synthesis, and solvothermal routes are favored as a result of their ability to create nanostructured products with high surface and tunable crystallinity.
Sol-gel synthesis, beginning with titanium alkoxides like titanium isopropoxide, enables precise stoichiometric control and the development of slim films, monoliths, or nanoparticles via hydrolysis and polycondensation responses.
Hydrothermal approaches enable the growth of well-defined nanostructures– such as nanotubes, nanorods, and hierarchical microspheres– by regulating temperature, stress, and pH in aqueous environments, often making use of mineralizers like NaOH to promote anisotropic growth.
2.2 Nanostructuring and Heterojunction Design
The performance of TiO two in photocatalysis and energy conversion is highly dependent on morphology.
One-dimensional nanostructures, such as nanotubes formed by anodization of titanium metal, supply direct electron transportation pathways and huge surface-to-volume ratios, enhancing charge splitting up efficiency.
Two-dimensional nanosheets, especially those revealing high-energy 001 aspects in anatase, exhibit exceptional sensitivity as a result of a greater density of undercoordinated titanium atoms that work as energetic sites for redox responses.
To even more improve performance, TiO ₂ is usually integrated right into heterojunction systems with various other semiconductors (e.g., g-C ₃ N FOUR, CdS, WO FOUR) or conductive supports like graphene and carbon nanotubes.
These composites assist in spatial separation of photogenerated electrons and holes, lower recombination losses, and extend light absorption right into the noticeable array with sensitization or band positioning effects.
3. Functional Properties and Surface Sensitivity
3.1 Photocatalytic Mechanisms and Environmental Applications
One of the most popular home of TiO ₂ is its photocatalytic task under UV irradiation, which makes it possible for the degradation of natural pollutants, microbial inactivation, and air and water purification.
Upon photon absorption, electrons are thrilled from the valence band to the conduction band, leaving holes that are powerful oxidizing representatives.
These charge carriers react with surface-adsorbed water and oxygen to create reactive oxygen types (ROS) such as hydroxyl radicals (- OH), superoxide anions (- O TWO ⁻), and hydrogen peroxide (H TWO O ₂), which non-selectively oxidize organic contaminants into CO ₂, H ₂ O, and mineral acids.
This mechanism is manipulated in self-cleaning surfaces, where TiO TWO-layered glass or tiles break down organic dust and biofilms under sunlight, and in wastewater treatment systems targeting dyes, pharmaceuticals, and endocrine disruptors.
Furthermore, TiO TWO-based photocatalysts are being created for air filtration, getting rid of unstable organic compounds (VOCs) and nitrogen oxides (NOₓ) from indoor and urban atmospheres.
3.2 Optical Scattering and Pigment Functionality
Past its responsive buildings, TiO two is one of the most commonly used white pigment in the world as a result of its extraordinary refractive index (~ 2.7 for rutile), which allows high opacity and brightness in paints, finishings, plastics, paper, and cosmetics.
The pigment features by scattering visible light efficiently; when particle dimension is enhanced to around half the wavelength of light (~ 200– 300 nm), Mie scattering is made the most of, resulting in premium hiding power.
Surface area treatments with silica, alumina, or natural coatings are applied to enhance diffusion, reduce photocatalytic task (to prevent deterioration of the host matrix), and boost toughness in exterior applications.
In sunscreens, nano-sized TiO two supplies broad-spectrum UV security by spreading and absorbing unsafe UVA and UVB radiation while continuing to be transparent in the noticeable range, supplying a physical barrier without the threats associated with some organic UV filters.
4. Emerging Applications in Power and Smart Materials
4.1 Function in Solar Power Conversion and Storage Space
Titanium dioxide plays an essential duty in renewable energy modern technologies, most significantly in dye-sensitized solar cells (DSSCs) and perovskite solar cells (PSCs).
In DSSCs, a mesoporous film of nanocrystalline anatase acts as an electron-transport layer, accepting photoexcited electrons from a color sensitizer and conducting them to the exterior circuit, while its broad bandgap guarantees very little parasitic absorption.
In PSCs, TiO two acts as the electron-selective call, helping with fee extraction and boosting tool security, although research study is ongoing to replace it with less photoactive choices to boost longevity.
TiO two is additionally checked out in photoelectrochemical (PEC) water splitting systems, where it works as a photoanode to oxidize water into oxygen, protons, and electrons under UV light, adding to green hydrogen manufacturing.
4.2 Combination into Smart Coatings and Biomedical Devices
Cutting-edge applications include smart home windows with self-cleaning and anti-fogging abilities, where TiO two coatings respond to light and moisture to keep openness and hygiene.
In biomedicine, TiO two is checked out for biosensing, medicine distribution, and antimicrobial implants because of its biocompatibility, security, and photo-triggered reactivity.
For instance, TiO two nanotubes expanded on titanium implants can advertise osteointegration while giving local anti-bacterial activity under light exposure.
In summary, titanium dioxide exemplifies the convergence of basic materials scientific research with useful technological innovation.
Its unique combination of optical, electronic, and surface area chemical buildings makes it possible for applications ranging from everyday consumer items to sophisticated ecological and energy systems.
As research study developments in nanostructuring, doping, and composite style, TiO ₂ remains to advance as a foundation material in sustainable and wise innovations.
