1. Introduction to Oil Submersed Transformers
In the intricate internet of our contemporary electrical grid, transformers play an important role, calmly stepping voltage up and down to make sure electrical energy can be sent efficiently over cross countries and dispersed safely to our homes and industries. Among the numerous kinds available, the oil immersed transformer stands as a testimony to tried and tested integrity and durability. For decades, these workhorses have created the foundation of power systems worldwide.
An oil submersed transformer is a type of electric transformer that uses a specific shielding oil as both a coolant and a protecting medium. This design is primarily used for tool to high-power applications, making it a foundation of electric infrastructure. This overview delves deep right into the world of oil submersed power transformers and oil immersed distribution transformers, discovering their technology, applications, and their advancing function in an era of digitalization and renewable resource.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a secured container loaded with insulating oil. The key function of the oil is twofold:
1. Insulation: The oil possesses high dielectric toughness, properly insulating the high-voltage windings from the transformer’s core and based container. This avoids short circuits and electrical failures.
2. Cooling: As the transformer operates, the windings generate substantial warm as a result of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s storage tank wall surfaces, and dissipates it right into the bordering air. Larger systems usually include radiators or fins to raise the surface area for more effective air conditioning.
This dual-purpose use of oil makes the oil submersed transformer incredibly efficient and durable, capable of handling high loads and withstanding transient overloads much better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these devices are oil immersed transformers, they offer unique functions within the power system network. Comprehending the difference is vital.
An oil submersed power transformer is a heavyweight, generally used in transmission networks at creating stations and major substations. Their key role is to “step-up” the voltage generated at the power plant to incredibly high levels (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for further distribution. They are defined by their very high power rankings (often surpassing 100 MVA), complicated building, and on-load faucet changers for voltage law.
An oil immersed distribution transformer, on the various other hand, carries out the last step in the power distribution chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and steps it to the low voltages (e.g., 400/230 V) utilized by business and residential consumers. You commonly discover them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller, have reduced power scores (normally up to 2,500 kVA), and are developed for optimal performance at reduced, much more consistent tons.

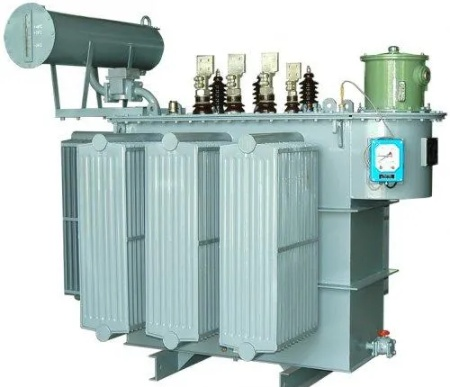

(Oil immersed power transformer)
2. Key Benefits of Oil Immersed Transformers
The enduring popularity of the oil submersed transformer is not unintended. It uses a collection of engaging advantages that make it the preferred selection for several demanding applications.
2.1 Superior Cooling and Overload Ability
The remarkable thermal capability of oil compared to air enables an oil submersed power transformer to handle and dissipate warmth far more successfully. This equates to a higher overload capacity. During durations of optimal electrical energy need, an oil submersed transformer can handle momentary overloads without suffering damage, a vital attribute for keeping grid stability. The oil’s flow makes sure also heat distribution, preventing local hot spots that can weaken insulation over time.
2.2 Boosted Insulation and Long Service Life
The mix of high-grade mineral oil and meticulously impregnated paper insulation produces a dielectric system of exceptional strength. This durable insulation system shields the transformer from voltage rises and transients, adding to a functional life expectancy that can reach 30-40 years or even more with proper upkeep. The secured tank also secures the interior components from moisture, dirt, and other climatic pollutants.
2.3 High Performance and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently the most economical selection. The materials used– mineral oil, steel container, and copper/aluminum windings– offer a beneficial equilibrium of performance and expense. The high effectiveness of these transformers, especially at their rated tons, leads to reduced energy losses over their life time, causing substantial expense financial savings for energy firms and huge industrial individuals.
3. Warm Topics and Future Trends
The globe of oil submersed transformers is not static. It is continuously evolving to fulfill new challenges and incorporate with contemporary innovations.
3.1 Eco-friendly and Fireproof Oils
Environmental and safety and security issues are driving a considerable change away from standard mineral oil. The marketplace is quickly embracing oil immersed transformers filled with biodegradable esters (artificial or all-natural). These oils supply a greater fire point (making them K-class fire-resistant), are much less poisonous, and are readily eco-friendly, dramatically decreasing the environmental influence in situation of a leak. This fad is making oil submersed distribution transformers more secure for installation in metropolitan locations and environmentally sensitive areas.
3.2 Assimilation with Smart Grids and IoT
The modern oil immersed power transformer is ending up being an intelligent node in the smart grid. Sensing units are being incorporated to keep track of essential specifications in real-time, consisting of:
Dissolved Gas Evaluation (DGA): Spotting mistake gases created within the oil to forecast incipient mistakes.
Temperature Level Tracking: Tracking top-oil and hotspot temperature levels.
Lots and Power Quality Tracking.
This information, transmitted using IoT (Net of Things) systems, makes it possible for predictive upkeep, protects against unexpected failures, and optimizes transformer usage and lifespan.
3.3 Supporting the Renewable Energy Change
The worldwide push for renewables is creating brand-new demand for oil immersed transformers. Massive solar ranches and wind power installations require durable oil submersed power transformers to step up the generated voltage to transmission degrees. In addition, the periodic nature of renewables locations better tension on grid components, and the tested dependability and overload capability of oil immersed transformers make them optimal for this vital function.
4. Choice and Upkeep Ideal Practices
Picking the best transformer and preserving it properly is key to a trusted power system.
4.1 How to Pick the Right Oil Immersed Transformer
Picking between an oil submersed power transformer and an oil immersed circulation transformer depends upon the application. Secret factors to consider consist of:
1. Voltage Level and kVA Score: Match the transformer’s requirements to your system’s needs.
2. Application: Transmission substation, plant, or commercial distribution.
3. Place: Indoor vs. exterior, environmental problems, and fire security policies (which might influence the selection of shielding oil).
4. Effectiveness Requirements: Follow regional efficiency criteria like DOE (United States) or EU CoC (Europe).
5. Budget: Consider both the initial resources price and the total expense of ownership, including losses.

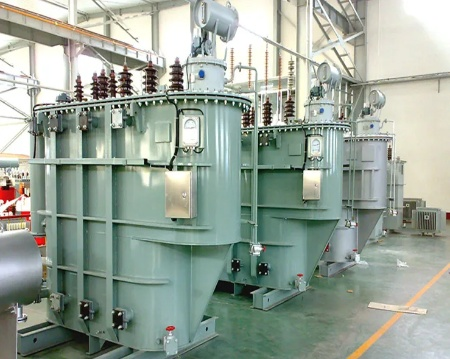

(Oil immersed distribution transformer)
4.2 Vital Maintenance for Long Life
Aggressive maintenance is vital for any oil submersed transformer. An extensive program must consist of:
1. Routine Oil Sampling and Screening: Periodic DGA and screening of dielectric stamina and moisture material are the most reliable ways to evaluate the health and wellness of the transformer.
2. Bushing and Insulation Evaluation: Aesthetic checks for splits, contamination, or leakages.
3. Faucet Changer Upkeep: Regular examination and servicing of on-load or off-load tap changers.
4. Maintain it Clean and Dry: Making sure the tank outside, radiators, and breathers are tidy and useful.
The oil immersed transformer, in its roles as both a high-capacity oil immersed power transformer and a common oil submersed distribution transformer, continues to be an irreplaceable part of our international energy facilities. Its tested design, coupled with recurring developments in shielding fluids and digital monitoring, ensures it will certainly continue to be a trusted, efficient, and smart service for powering our world for years to find. As we build the grids of the future, integrating more renewables and electronic knowledge, the robust and versatile oil immersed transformer will certainly be at the heart of it.
