1. Material Principles and Structural Feature
1.1 Crystal Chemistry and Polymorphism

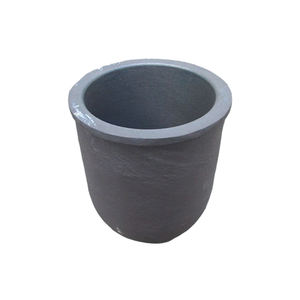

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms set up in a tetrahedral latticework, forming among the most thermally and chemically robust materials known.
It exists in over 250 polytypic forms, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most relevant for high-temperature applications.
The strong Si– C bonds, with bond energy going beyond 300 kJ/mol, confer exceptional solidity, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is favored because of its capacity to keep structural integrity under extreme thermal slopes and destructive liquified environments.
Unlike oxide ceramics, SiC does not undertake turbulent phase changes approximately its sublimation factor (~ 2700 ° C), making it excellent for continual procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A defining quality of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises uniform heat distribution and lessens thermal anxiety throughout quick home heating or air conditioning.
This residential or commercial property contrasts dramatically with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to splitting under thermal shock.
SiC additionally displays superb mechanical stamina at raised temperatures, maintaining over 80% of its room-temperature flexural strength (as much as 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) better improves resistance to thermal shock, a critical consider duplicated cycling between ambient and operational temperatures.
In addition, SiC shows superior wear and abrasion resistance, ensuring long life span in environments including mechanical handling or unstable melt flow.
2. Production Approaches and Microstructural Control
( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Approaches
Commercial SiC crucibles are primarily fabricated via pressureless sintering, reaction bonding, or warm pressing, each offering distinctive benefits in price, pureness, and performance.
Pressureless sintering includes compacting great SiC powder with sintering aids such as boron and carbon, adhered to by high-temperature therapy (2000– 2200 ° C )in inert ambience to attain near-theoretical density.
This method returns high-purity, high-strength crucibles appropriate for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is produced by infiltrating a porous carbon preform with molten silicon, which responds to create β-SiC sitting, leading to a composite of SiC and recurring silicon.
While a little lower in thermal conductivity because of metallic silicon additions, RBSC supplies superb dimensional security and lower production expense, making it prominent for large-scale commercial usage.
Hot-pressed SiC, though extra costly, gives the highest possible thickness and purity, reserved for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, including grinding and washing, makes sure precise dimensional tolerances and smooth interior surfaces that decrease nucleation websites and decrease contamination threat.
Surface area roughness is very carefully controlled to stop melt bond and promote easy release of strengthened materials.
Crucible geometry– such as wall density, taper angle, and bottom curvature– is optimized to stabilize thermal mass, structural stamina, and compatibility with heating system burner.
Personalized layouts accommodate particular thaw quantities, home heating profiles, and product sensitivity, ensuring optimal efficiency across diverse industrial processes.
Advanced quality control, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, confirms microstructural homogeneity and lack of problems like pores or splits.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Environments
SiC crucibles display remarkable resistance to chemical attack by molten metals, slags, and non-oxidizing salts, surpassing traditional graphite and oxide porcelains.
They are stable touching liquified light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution due to low interfacial energy and formation of safety surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that might degrade electronic buildings.
Nonetheless, under very oxidizing conditions or in the visibility of alkaline fluxes, SiC can oxidize to develop silica (SiO TWO), which might react even more to create low-melting-point silicates.
As a result, SiC is finest fit for neutral or lowering ambiences, where its stability is maximized.
3.2 Limitations and Compatibility Considerations
In spite of its effectiveness, SiC is not universally inert; it reacts with certain molten materials, specifically iron-group steels (Fe, Ni, Carbon monoxide) at heats through carburization and dissolution processes.
In molten steel handling, SiC crucibles deteriorate swiftly and are as a result avoided.
In a similar way, alkali and alkaline planet steels (e.g., Li, Na, Ca) can decrease SiC, releasing carbon and forming silicides, limiting their use in battery product synthesis or reactive steel spreading.
For liquified glass and ceramics, SiC is normally compatible yet may introduce trace silicon right into extremely sensitive optical or electronic glasses.
Understanding these material-specific communications is vital for choosing the ideal crucible type and guaranteeing process purity and crucible long life.
4. Industrial Applications and Technological Development
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are crucial in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they endure extended direct exposure to molten silicon at ~ 1420 ° C.
Their thermal security guarantees uniform formation and lessens dislocation density, straight affecting photovoltaic or pv effectiveness.
In foundries, SiC crucibles are utilized for melting non-ferrous metals such as aluminum and brass, providing longer life span and lowered dross formation contrasted to clay-graphite options.
They are also utilized in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of advanced porcelains and intermetallic compounds.
4.2 Future Patterns and Advanced Product Integration
Arising applications consist of the use of SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being evaluated.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y TWO O FIVE) are being related to SiC surfaces to additionally improve chemical inertness and stop silicon diffusion in ultra-high-purity procedures.
Additive production of SiC elements making use of binder jetting or stereolithography is under development, promising complex geometries and quick prototyping for specialized crucible layouts.
As demand expands for energy-efficient, long lasting, and contamination-free high-temperature processing, silicon carbide crucibles will certainly remain a foundation technology in innovative materials producing.
In conclusion, silicon carbide crucibles stand for an essential making it possible for element in high-temperature industrial and clinical procedures.
Their unrivaled mix of thermal security, mechanical toughness, and chemical resistance makes them the material of choice for applications where efficiency and dependability are extremely important.
