1. Product Properties and Structural Honesty
1.1 Inherent Features of Silicon Carbide

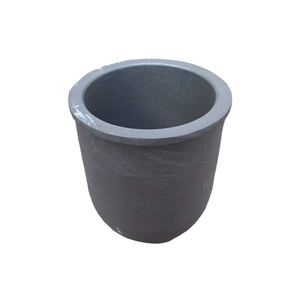

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms set up in a tetrahedral latticework structure, largely existing in over 250 polytypic kinds, with 6H, 4H, and 3C being the most highly relevant.
Its solid directional bonding imparts outstanding firmness (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m Ā· K )for pure solitary crystals), and impressive chemical inertness, making it among the most robust materials for extreme environments.
The large bandgap (2.9– 3.3 eV) ensures outstanding electrical insulation at room temperature level and high resistance to radiation damage, while its low thermal expansion coefficient (~ 4.0 Ć 10 ā»ā¶/ K) adds to superior thermal shock resistance.
These intrinsic properties are maintained even at temperatures surpassing 1600 Ā° C, permitting SiC to maintain architectural integrity under prolonged direct exposure to thaw metals, slags, and reactive gases.
Unlike oxide porcelains such as alumina, SiC does not react easily with carbon or type low-melting eutectics in minimizing atmospheres, a critical benefit in metallurgical and semiconductor processing.
When produced into crucibles– vessels created to contain and heat products– SiC outperforms typical products like quartz, graphite, and alumina in both life expectancy and process dependability.
1.2 Microstructure and Mechanical Security
The performance of SiC crucibles is carefully tied to their microstructure, which depends on the production method and sintering ingredients used.
Refractory-grade crucibles are normally generated using response bonding, where porous carbon preforms are penetrated with molten silicon, forming Ī²-SiC via the response Si(l) + C(s) ā SiC(s).
This procedure generates a composite framework of primary SiC with residual free silicon (5– 10%), which enhances thermal conductivity however might restrict use over 1414 Ā° C(the melting point of silicon).
Additionally, fully sintered SiC crucibles are made with solid-state or liquid-phase sintering utilizing boron and carbon or alumina-yttria ingredients, attaining near-theoretical density and higher pureness.
These show superior creep resistance and oxidation stability but are extra pricey and challenging to fabricate in plus sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC provides exceptional resistance to thermal tiredness and mechanical disintegration, crucial when taking care of molten silicon, germanium, or III-V compounds in crystal growth processes.
Grain border engineering, including the control of second phases and porosity, plays an important role in figuring out lasting toughness under cyclic home heating and aggressive chemical settings.
2. Thermal Performance and Environmental Resistance
2.1 Thermal Conductivity and Warmth Distribution
One of the defining advantages of SiC crucibles is their high thermal conductivity, which allows rapid and uniform heat transfer during high-temperature processing.
In contrast to low-conductivity materials like merged silica (1– 2 W/(m Ā· K)), SiC successfully distributes thermal energy throughout the crucible wall, minimizing localized hot spots and thermal slopes.
This harmony is crucial in processes such as directional solidification of multicrystalline silicon for photovoltaics, where temperature homogeneity straight impacts crystal quality and flaw thickness.
The combination of high conductivity and reduced thermal growth causes a remarkably high thermal shock criterion (R = k(1 ā Ī½)Ī±/ Ļ), making SiC crucibles immune to breaking during rapid home heating or cooling cycles.
This permits faster furnace ramp rates, improved throughput, and reduced downtime due to crucible failing.
Additionally, the product’s capacity to hold up against duplicated thermal biking without significant degradation makes it suitable for batch processing in commercial furnaces operating above 1500 Ā° C.
2.2 Oxidation and Chemical Compatibility
At raised temperature levels in air, SiC undergoes easy oxidation, developing a safety layer of amorphous silica (SiO ā) on its surface: SiC + 3/2 O ā ā SiO TWO + CO.
This lustrous layer densifies at high temperatures, acting as a diffusion obstacle that slows down additional oxidation and protects the underlying ceramic framework.
Nonetheless, in decreasing environments or vacuum conditions– usual in semiconductor and steel refining– oxidation is suppressed, and SiC continues to be chemically secure versus molten silicon, light weight aluminum, and lots of slags.
It stands up to dissolution and response with liquified silicon approximately 1410 Ā° C, although extended exposure can lead to mild carbon pick-up or user interface roughening.
Crucially, SiC does not present metal contaminations into delicate thaws, an essential need for electronic-grade silicon production where contamination by Fe, Cu, or Cr should be kept listed below ppb degrees.
However, care should be taken when processing alkaline earth steels or highly responsive oxides, as some can wear away SiC at extreme temperature levels.
3. Production Processes and Quality Assurance
3.1 Construction Strategies and Dimensional Control
The production of SiC crucibles entails shaping, drying, and high-temperature sintering or infiltration, with approaches selected based on called for purity, dimension, and application.
Usual creating methods consist of isostatic pushing, extrusion, and slip casting, each providing various levels of dimensional precision and microstructural uniformity.
For big crucibles made use of in photovoltaic or pv ingot spreading, isostatic pushing guarantees regular wall surface thickness and density, lowering the threat of asymmetric thermal expansion and failure.
Reaction-bonded SiC (RBSC) crucibles are economical and extensively utilized in factories and solar industries, though residual silicon restrictions maximum solution temperature level.
Sintered SiC (SSiC) versions, while extra expensive, offer exceptional purity, strength, and resistance to chemical strike, making them ideal for high-value applications like GaAs or InP crystal development.
Accuracy machining after sintering may be called for to accomplish limited tolerances, especially for crucibles made use of in upright slope freeze (VGF) or Czochralski (CZ) systems.
Surface area finishing is essential to decrease nucleation websites for problems and ensure smooth thaw circulation during spreading.
3.2 Quality Assurance and Performance Validation
Extensive quality assurance is important to make sure integrity and long life of SiC crucibles under requiring operational problems.
Non-destructive evaluation techniques such as ultrasonic screening and X-ray tomography are employed to find internal fractures, voids, or density variants.
Chemical analysis using XRF or ICP-MS verifies reduced degrees of metal pollutants, while thermal conductivity and flexural stamina are measured to validate material uniformity.
Crucibles are frequently subjected to substitute thermal cycling tests prior to delivery to recognize potential failing settings.
Set traceability and qualification are conventional in semiconductor and aerospace supply chains, where element failing can result in costly production losses.
4. Applications and Technical Impact
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a crucial role in the production of high-purity silicon for both microelectronics and solar batteries.
In directional solidification furnaces for multicrystalline solar ingots, big SiC crucibles act as the key container for liquified silicon, sustaining temperatures above 1500 Ā° C for numerous cycles.
Their chemical inertness protects against contamination, while their thermal security ensures consistent solidification fronts, causing higher-quality wafers with less misplacements and grain borders.
Some suppliers coat the inner surface area with silicon nitride or silica to better lower bond and assist in ingot launch after cooling.
In research-scale Czochralski growth of substance semiconductors, smaller SiC crucibles are used to hold thaws of GaAs, InSb, or CdTe, where marginal sensitivity and dimensional security are vital.
4.2 Metallurgy, Foundry, and Emerging Technologies
Past semiconductors, SiC crucibles are indispensable in metal refining, alloy prep work, and laboratory-scale melting procedures entailing light weight aluminum, copper, and precious metals.
Their resistance to thermal shock and erosion makes them ideal for induction and resistance heaters in foundries, where they last longer than graphite and alumina choices by several cycles.
In additive manufacturing of reactive steels, SiC containers are utilized in vacuum cleaner induction melting to prevent crucible failure and contamination.
Arising applications consist of molten salt reactors and focused solar power systems, where SiC vessels may contain high-temperature salts or liquid steels for thermal energy storage space.
With ongoing advancements in sintering modern technology and covering design, SiC crucibles are positioned to support next-generation products processing, enabling cleaner, extra effective, and scalable commercial thermal systems.
In recap, silicon carbide crucibles stand for an essential enabling technology in high-temperature product synthesis, incorporating remarkable thermal, mechanical, and chemical efficiency in a solitary engineered part.
Their prevalent adoption throughout semiconductor, solar, and metallurgical sectors underscores their duty as a cornerstone of contemporary commercial ceramics.
