1. Basics of Foam Generation and the Role in Lightweight Concrete Systems
1.1 Concepts of Air Entrainment and Cellular Framework Formation

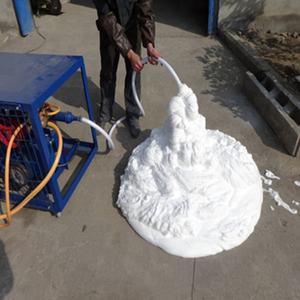

(Lightweight Concrete Foam Generators)
Lightweight concrete, a course of construction products identified by minimized density and improved thermal insulation, relies essentially on the regulated intro of air or gas spaces within a cementitious matrix– a process referred to as foaming.
The production of these evenly distributed, steady air cells is accomplished via making use of a specialized tool referred to as a foam generator, which produces fine, microscale bubbles that are consequently blended into the concrete slurry.
These bubbles, generally varying from 50 to 500 micrometers in diameter, end up being completely entrained upon concrete hydration, causing a mobile concrete framework with considerably reduced device weight– commonly in between 300 kg/m three and 1,800 kg/m SIX– compared to conventional concrete (~ 2,400 kg/m SIX).
The foam generator is not simply a complementary device however a critical design part that determines the top quality, consistency, and performance of the last lightweight concrete product.
The process begins with a fluid frothing agent, typically a protein-based or artificial surfactant solution, which is presented into the generator where it is mechanically or pneumatically spread right into a dense foam through high shear or compressed air shot.
The stability and bubble size circulation of the generated foam straight affect key material properties such as compressive strength, thermal conductivity, and workability.
1.2 Classification and Functional Systems of Foam Generators
Foam generators are extensively classified right into 3 main kinds based upon their functional concepts: low-pressure (or wet-film), high-pressure (or dynamic), and rotary (or centrifugal) systems.
Low-pressure generators use a porous medium– such as a great mesh, textile, or ceramic plate– where pressed air is required, producing bubbles as the foaming service moves over the surface.
This technique generates relatively large, much less consistent bubbles and is typically utilized for lower-grade applications where exact control is much less crucial.
High-pressure systems, on the other hand, utilize a nozzle-based design where a high-velocity stream of pressed air shears the lathering fluid right into a penalty, homogeneous foam with slim bubble size circulation.
These systems provide remarkable control over foam thickness and security, making them ideal for structural-grade lightweight concrete and precast applications.

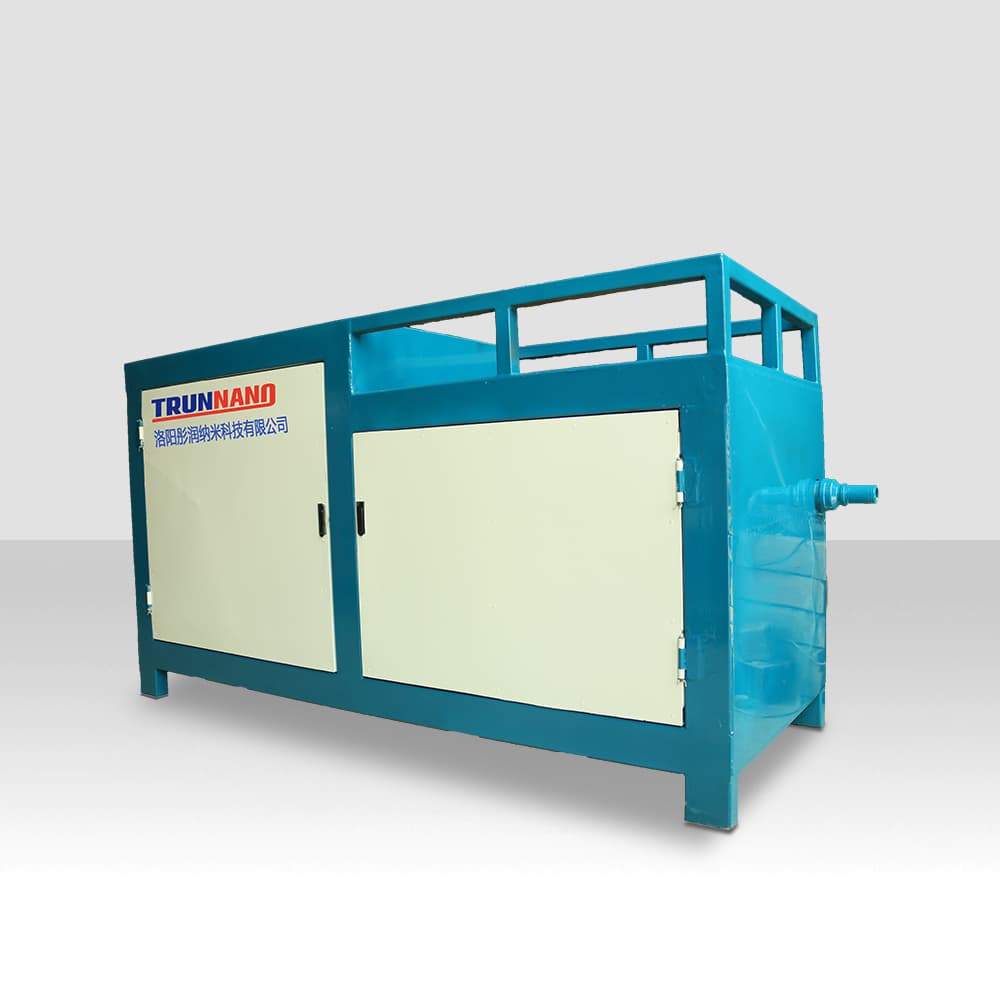

( Lightweight Concrete Foam Generators)
Rotating foam generators utilize a spinning disk or drum that flings the frothing service right into a stream of air, creating bubbles with mechanical dispersion.
While much less accurate than high-pressure systems, rotary generators are valued for their effectiveness, simplicity of upkeep, and continuous result, ideal for large on-site putting operations.
The choice of foam generator type relies on project-specific demands, consisting of preferred concrete thickness, manufacturing volume, and performance specs.
2. Product Scientific Research Behind Foam Stability and Concrete Efficiency
2.1 Foaming Agents and Interfacial Chemistry
The performance of a foam generator is inherently linked to the chemical structure and physical actions of the lathering agent.
Frothing agents are surfactants that reduce the surface area stress of water, enabling the development of stable air-liquid user interfaces.
Protein-based representatives, stemmed from hydrolyzed keratin or albumin, generate sturdy, flexible foam movies with superb security and are usually preferred in structural applications.
Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and lower expense but may produce less stable bubbles under long term blending or damaging ecological conditions.
The molecular structure of the surfactant determines the thickness and mechanical toughness of the lamellae (slim fluid movies) surrounding each bubble, which must withstand coalescence and drainage during mixing and healing.
Ingredients such as viscosity modifiers, stabilizers, and pH barriers are often incorporated right into frothing remedies to enhance foam persistence and compatibility with cement chemistry.
2.2 Influence of Foam Characteristics on Concrete Properties
The physical qualities of the produced foam– bubble dimension, size distribution, air content, and foam density– straight dictate the macroscopic behavior of light-weight concrete.
Smaller, evenly dispersed bubbles boost mechanical toughness by decreasing stress concentration factors and developing a much more uniform microstructure.
Alternatively, bigger or uneven bubbles can work as flaws, reducing compressive toughness and enhancing leaks in the structure.
Foam security is similarly critical; premature collapse or coalescence throughout mixing bring about non-uniform thickness, segregation, and minimized insulation performance.
The air-void system likewise influences thermal conductivity, with finer, closed-cell structures giving remarkable insulation due to entraped air’s reduced thermal diffusivity.
Additionally, the water content of the foam influences the water-cement ratio of the last mix, requiring accurate calibration to avoid damaging the concrete matrix or postponing hydration.
Advanced foam generators currently include real-time surveillance and responses systems to maintain consistent foam outcome, ensuring reproducibility throughout batches.
3. Assimilation in Modern Construction and Industrial Applications
3.1 Structural and Non-Structural Uses of Foamed Concrete
Light-weight concrete generated using foam generators is employed throughout a wide range of construction applications, ranging from insulation panels and void filling to load-bearing walls and pavement systems.
In building envelopes, foamed concrete gives excellent thermal and acoustic insulation, adding to energy-efficient designs and lowered heating and cooling tons.
Its reduced thickness additionally lowers architectural dead lots, enabling smaller structures and longer periods in high-rise and bridge construction.
In civil design, it is utilized for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress attributes stop ground disruption and improve safety.
Precast makers use high-precision foam generators to generate lightweight blocks, panels, and architectural elements with limited dimensional tolerances and regular high quality.
Additionally, foamed concrete displays integral fire resistance because of its low thermal conductivity and lack of natural elements, making it ideal for fire-rated assemblies and passive fire defense systems.
3.2 Automation, Scalability, and On-Site Manufacturing Systems
Modern building needs rapid, scalable, and dependable production of lightweight concrete, driving the combination of foam generators into computerized batching and pumping systems.
Completely automated plants can integrate foam generation with concrete blending, water application, and additive shot, enabling constant production with very little human treatment.
Mobile foam generator systems are significantly released on construction websites, permitting on-demand manufacture of foamed concrete directly at the point of use, minimizing transport expenses and material waste.
These systems are often outfitted with electronic controls, remote surveillance, and information logging capacities to make sure conformity with engineering requirements and high quality requirements.
The scalability of foam generation modern technology– from small portable units to industrial-scale systems– sustains its fostering in both established and arising markets, promoting sustainable building techniques around the world.
4. Technological Innovations and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Emerging innovations in foam generator layout focus on boosting accuracy, effectiveness, and adaptability with digitalization and sensing unit assimilation.
Smart foam generators equipped with pressure sensors, flow meters, and optical bubble analyzers can dynamically adjust air-to-liquid ratios and monitor foam high quality in genuine time.
Machine learning algorithms are being checked out to predict foam actions based upon environmental conditions, resources variants, and historical efficiency information.
Such developments aim to lessen batch-to-batch variability and maximize material performance, especially in high-stakes applications like nuclear securing or offshore construction.
4.2 Sustainability, Environmental Effect, and Green Product Assimilation
As the building industry approaches decarbonization, foam generators play a role in decreasing the ecological footprint of concrete.
By lowering material density, less cement is called for per unit volume, directly minimizing CO â‚‚ discharges associated with cement manufacturing.
Moreover, frothed concrete can incorporate additional cementitious materials (SCMs) such as fly ash, slag, or silica fume, boosting sustainability without compromising performance.
Research study is likewise underway to create bio-based frothing agents derived from sustainable resources, lessening dependence on petrochemical surfactants.
Future developments might consist of energy-efficient foam generation approaches, assimilation with carbon capture innovations, and recyclable concrete formulations allowed by secure mobile frameworks.
In conclusion, the light-weight concrete foam generator is much more than a mechanical gadget– it is a crucial enabler of innovative product engineering in contemporary building.
By precisely regulating the design of air spaces at the microscale, it changes standard concrete into a multifunctional, sustainable, and high-performance product.
As innovation advances, foam generators will certainly remain to drive innovation in structure scientific research, infrastructure resilience, and environmental stewardship.
