Introduction to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has gained extensive recognition for its outstanding thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal structure, AlN displays an unique mix of homes that make it the most excellent substratum product for applications in electronics, optoelectronics, power components, and high-temperature settings. Its capability to efficiently dissipate warm while maintaining exceptional dielectric strength positions AlN as a superior option to standard ceramic substrates such as alumina and beryllium oxide. This write-up explores the basic features of light weight aluminum nitride porcelains, explores fabrication methods, and highlights its vital roles throughout advanced technological domains.

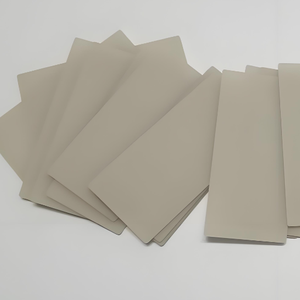

(Aluminum Nitride Ceramics)
Crystal Framework and Fundamental Residence
The performance of aluminum nitride as a substratum product is mostly determined by its crystalline structure and intrinsic physical homes. AlN embraces a wurtzite-type latticework made up of rotating aluminum and nitrogen atoms, which adds to its high thermal conductivity– typically going beyond 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth substantially exceeds those of other commonly used ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
In addition to its thermal efficiency, AlN possesses a broad bandgap of about 6.2 eV, leading to superb electric insulation properties even at heats. It additionally demonstrates reduced thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimum match for semiconductor gadget product packaging. In addition, AlN exhibits high chemical inertness and resistance to thaw steels, improving its viability for rough environments. These mixed qualities establish AlN as a prominent candidate for high-power electronic substrates and thermally handled systems.
Fabrication and Sintering Technologies
Making top quality aluminum nitride porcelains needs accurate powder synthesis and sintering strategies to attain thick microstructures with minimal pollutants. As a result of its covalent bonding nature, AlN does not easily densify via standard pressureless sintering. Therefore, sintering help such as yttrium oxide (Y ₂ O FOUR), calcium oxide (CaO), or unusual planet components are normally contributed to advertise liquid-phase sintering and boost grain border diffusion.
The manufacture process usually starts with the carbothermal reduction of aluminum oxide in a nitrogen ambience to manufacture AlN powders. These powders are then milled, formed via approaches like tape spreading or shot molding, and sintered at temperatures in between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pushing or spark plasma sintering (SPS) can even more improve thickness and thermal conductivity by minimizing porosity and advertising grain alignment. Advanced additive production techniques are likewise being discovered to make complex-shaped AlN parts with tailored thermal monitoring capacities.
Application in Electronic Product Packaging and Power Modules
Among one of the most popular uses of light weight aluminum nitride ceramics remains in digital product packaging, specifically for high-power gadgets such as shielded gateway bipolar transistors (IGBTs), laser diodes, and superhigh frequency (RF) amplifiers. As power thickness enhance in modern-day electronic devices, efficient warmth dissipation comes to be important to ensure integrity and longevity. AlN substrates give an optimum option by incorporating high thermal conductivity with excellent electric seclusion, protecting against brief circuits and thermal runaway conditions.
In addition, AlN-based straight bound copper (DBC) and active metal brazed (AMB) substrates are significantly utilized in power module designs for electric lorries, renewable energy inverters, and commercial electric motor drives. Compared to conventional alumina or silicon nitride substrates, AlN offers quicker heat transfer and far better compatibility with silicon chip coefficients of thermal development, therefore decreasing mechanical anxiety and improving overall system efficiency. Continuous research study aims to boost the bonding strength and metallization techniques on AlN surface areas to additional increase its application extent.
Use in Optoelectronic and High-Temperature Instruments
Beyond electronic packaging, light weight aluminum nitride ceramics play a vital duty in optoelectronic and high-temperature applications as a result of their openness to ultraviolet (UV) radiation and thermal security. AlN is commonly utilized as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, particularly in applications requiring sanitation, sensing, and optical interaction. Its broad bandgap and low absorption coefficient in the UV variety make it an excellent prospect for supporting light weight aluminum gallium nitride (AlGaN)-based heterostructures.
In addition, AlN’s capacity to operate reliably at temperature levels surpassing 1000 ° C makes it suitable for use in sensing units, thermoelectric generators, and parts revealed to severe thermal loads. In aerospace and protection industries, AlN-based sensing unit plans are used in jet engine surveillance systems and high-temperature control systems where traditional products would certainly fail. Continual developments in thin-film deposition and epitaxial development techniques are expanding the potential of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Dependability
A crucial consideration for any type of substrate material is its long-lasting dependability under functional tensions. Aluminum nitride demonstrates premium ecological security compared to many other porcelains. It is extremely resistant to corrosion from acids, alkalis, and molten metals, making sure toughness in aggressive chemical settings. However, AlN is prone to hydrolysis when exposed to dampness at elevated temperature levels, which can weaken its surface area and lower thermal performance.
To minimize this issue, safety finishings such as silicon nitride (Si four N ₄), aluminum oxide, or polymer-based encapsulation layers are usually put on enhance wetness resistance. Additionally, careful sealing and product packaging methods are carried out during device setting up to preserve the stability of AlN substrates throughout their life span. As ecological regulations become much more rigorous, the non-toxic nature of AlN also positions it as a favored option to beryllium oxide, which presents health dangers throughout processing and disposal.
Final thought
Light weight aluminum nitride ceramics represent a course of innovative products distinctly matched to address the growing needs for reliable thermal management and electrical insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor modern technologies make them one of the most optimal substrate product for a large range of applications– from automobile power modules to deep UV LEDs and high-temperature sensing units. As manufacture technologies continue to evolve and economical manufacturing methods grow, the adoption of AlN substrates is anticipated to rise substantially, driving technology in next-generation electronic and photonic tools.
