1. Product Basics and Architectural Attributes of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of α-Alumina

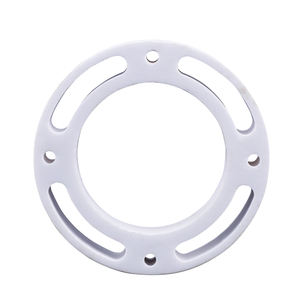

(Alumina Ceramic Substrates)
Alumina ceramic substratums, primarily composed of aluminum oxide (Al two O ₃), act as the backbone of modern digital packaging due to their phenomenal equilibrium of electric insulation, thermal security, mechanical stamina, and manufacturability.
One of the most thermodynamically secure stage of alumina at high temperatures is corundum, or α-Al ₂ O ₃, which crystallizes in a hexagonal close-packed oxygen lattice with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites.
This thick atomic plan conveys high firmness (Mohs 9), outstanding wear resistance, and strong chemical inertness, making α-alumina appropriate for harsh operating settings.
Industrial substratums typically consist of 90– 99.8% Al Two O SIX, with minor enhancements of silica (SiO TWO), magnesia (MgO), or rare planet oxides made use of as sintering help to advertise densification and control grain growth during high-temperature processing.
Higher pureness qualities (e.g., 99.5% and above) display remarkable electrical resistivity and thermal conductivity, while lower pureness versions (90– 96%) offer cost-efficient services for less requiring applications.
1.2 Microstructure and Problem Engineering for Electronic Integrity
The performance of alumina substratums in digital systems is seriously based on microstructural uniformity and issue reduction.
A fine, equiaxed grain structure– generally varying from 1 to 10 micrometers– makes certain mechanical stability and minimizes the possibility of crack proliferation under thermal or mechanical tension.
Porosity, specifically interconnected or surface-connected pores, should be lessened as it deteriorates both mechanical stamina and dielectric performance.
Advanced processing methods such as tape spreading, isostatic pushing, and regulated sintering in air or controlled environments make it possible for the manufacturing of substratums with near-theoretical density (> 99.5%) and surface roughness listed below 0.5 µm, crucial for thin-film metallization and wire bonding.
In addition, contamination segregation at grain borders can result in leakage currents or electrochemical migration under predisposition, requiring stringent control over raw material pureness and sintering problems to guarantee long-term reliability in humid or high-voltage atmospheres.
2. Production Processes and Substrate Fabrication Technologies
( Alumina Ceramic Substrates)
2.1 Tape Casting and Eco-friendly Body Handling
The manufacturing of alumina ceramic substratums begins with the prep work of an extremely spread slurry consisting of submicron Al ₂ O five powder, natural binders, plasticizers, dispersants, and solvents.
This slurry is processed through tape casting– a constant approach where the suspension is topped a relocating carrier film using a precision medical professional blade to accomplish consistent thickness, generally between 0.1 mm and 1.0 mm.
After solvent dissipation, the resulting “eco-friendly tape” is versatile and can be punched, pierced, or laser-cut to develop using holes for upright affiliations.
Numerous layers might be laminated to create multilayer substratums for complicated circuit combination, although most of commercial applications make use of single-layer configurations because of set you back and thermal development factors to consider.
The eco-friendly tapes are after that meticulously debound to eliminate natural additives via controlled thermal decomposition prior to final sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is carried out in air at temperature levels in between 1550 ° C and 1650 ° C, where solid-state diffusion drives pore elimination and grain coarsening to accomplish complete densification.
The straight shrinking throughout sintering– normally 15– 20%– must be exactly predicted and compensated for in the design of eco-friendly tapes to make certain dimensional precision of the final substrate.
Following sintering, metallization is put on form conductive traces, pads, and vias.
2 primary techniques control: thick-film printing and thin-film deposition.
In thick-film technology, pastes including steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a reducing atmosphere to form robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or evaporation are used to deposit bond layers (e.g., titanium or chromium) adhered to by copper or gold, allowing sub-micron pattern using photolithography.
Vias are full of conductive pastes and terminated to establish electrical interconnections in between layers in multilayer designs.
3. Useful Residences and Performance Metrics in Electronic Solution
3.1 Thermal and Electrical Actions Under Operational Stress And Anxiety
Alumina substrates are valued for their beneficial mix of moderate thermal conductivity (20– 35 W/m · K for 96– 99.8% Al ₂ O ₃), which enables effective heat dissipation from power tools, and high quantity resistivity (> 10 ¹⁴ Ω · centimeters), making certain marginal leakage current.
Their dielectric continuous (εᵣ ≈ 9– 10 at 1 MHz) is secure over a broad temperature level and frequency range, making them appropriate for high-frequency circuits as much as numerous gigahertz, although lower-κ materials like light weight aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal development (CTE) of alumina (~ 6.8– 7.2 ppm/K) is fairly well-matched to that of silicon (~ 3 ppm/K) and particular product packaging alloys, minimizing thermo-mechanical anxiety during gadget operation and thermal cycling.
Nonetheless, the CTE mismatch with silicon continues to be a problem in flip-chip and straight die-attach configurations, frequently needing compliant interposers or underfill products to minimize exhaustion failure.
3.2 Mechanical Effectiveness and Environmental Longevity
Mechanically, alumina substratums display high flexural stamina (300– 400 MPa) and superb dimensional stability under load, allowing their use in ruggedized electronics for aerospace, automobile, and commercial control systems.
They are immune to vibration, shock, and creep at raised temperatures, maintaining structural integrity as much as 1500 ° C in inert environments.
In moist environments, high-purity alumina shows minimal wetness absorption and superb resistance to ion migration, guaranteeing long-term integrity in outside and high-humidity applications.
Surface firmness also secures against mechanical damages throughout handling and setting up, although treatment has to be taken to avoid side damaging because of intrinsic brittleness.
4. Industrial Applications and Technological Influence Throughout Sectors
4.1 Power Electronics, RF Modules, and Automotive Equipments
Alumina ceramic substratums are common in power electronic components, consisting of insulated gate bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they give electric isolation while facilitating warmth transfer to heat sinks.
In superhigh frequency (RF) and microwave circuits, they serve as provider platforms for hybrid incorporated circuits (HICs), surface area acoustic wave (SAW) filters, and antenna feed networks as a result of their stable dielectric buildings and reduced loss tangent.
In the automobile sector, alumina substratums are used in engine control devices (ECUs), sensor plans, and electrical automobile (EV) power converters, where they sustain heats, thermal biking, and exposure to corrosive fluids.
Their integrity under extreme problems makes them essential for safety-critical systems such as anti-lock stopping (ABDOMINAL) and progressed vehicle driver aid systems (ADAS).
4.2 Medical Gadgets, Aerospace, and Arising Micro-Electro-Mechanical Systems
Past consumer and industrial electronics, alumina substratums are utilized in implantable clinical gadgets such as pacemakers and neurostimulators, where hermetic securing and biocompatibility are extremely important.
In aerospace and protection, they are utilized in avionics, radar systems, and satellite interaction components because of their radiation resistance and stability in vacuum settings.
Additionally, alumina is significantly made use of as an architectural and protecting system in micro-electro-mechanical systems (MEMS), consisting of pressure sensors, accelerometers, and microfluidic devices, where its chemical inertness and compatibility with thin-film processing are helpful.
As electronic systems remain to require greater power densities, miniaturization, and dependability under severe conditions, alumina ceramic substrates remain a foundation material, linking the gap between efficiency, expense, and manufacturability in innovative electronic product packaging.
