1. Product Fundamentals and Crystallographic Characteristic
1.1 Stage Structure and Polymorphic Actions

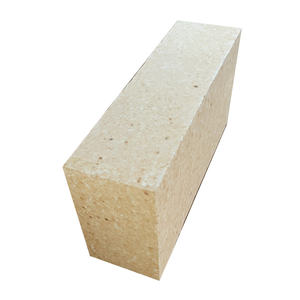

(Alumina Ceramic Blocks)
Alumina (Al â O SIX), particularly in its α-phase form, is among one of the most widely made use of technological porcelains due to its superb equilibrium of mechanical strength, chemical inertness, and thermal stability.
While light weight aluminum oxide exists in a number of metastable phases (Îł, ÎŽ, Ξ, Îș), α-alumina is the thermodynamically steady crystalline structure at high temperatures, defined by a thick hexagonal close-packed (HCP) setup of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial sites.
This ordered structure, known as corundum, confers high latticework power and strong ionic-covalent bonding, resulting in a melting point of approximately 2054 ° C and resistance to stage transformation under extreme thermal conditions.
The change from transitional aluminas to α-Al two O â normally occurs above 1100 ° C and is come with by significant quantity contraction and loss of surface, making stage control critical during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O FOUR) show exceptional performance in extreme environments, while lower-grade make-ups (90– 95%) may include secondary stages such as mullite or glassy grain border stages for economical applications.
1.2 Microstructure and Mechanical Honesty
The efficiency of alumina ceramic blocks is profoundly affected by microstructural functions including grain dimension, porosity, and grain limit communication.
Fine-grained microstructures (grain size < 5 ”m) usually give higher flexural stamina (as much as 400 MPa) and improved fracture durability compared to coarse-grained counterparts, as smaller sized grains hinder crack breeding.
Porosity, also at low degrees (1– 5%), substantially reduces mechanical toughness and thermal conductivity, necessitating full densification via pressure-assisted sintering approaches such as hot pressing or hot isostatic pushing (HIP).
Additives like MgO are frequently introduced in trace amounts (â 0.1 wt%) to hinder unusual grain development throughout sintering, making sure uniform microstructure and dimensional stability.
The resulting ceramic blocks display high hardness (â 1800 HV), superb wear resistance, and reduced creep prices at raised temperatures, making them appropriate for load-bearing and rough environments.
2. Production and Handling Techniques

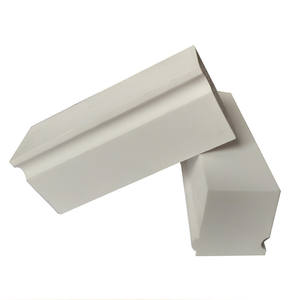

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Techniques
The manufacturing of alumina ceramic blocks begins with high-purity alumina powders derived from calcined bauxite by means of the Bayer process or synthesized through precipitation or sol-gel routes for higher pureness.
Powders are milled to accomplish slim bit size circulation, enhancing packing density and sinterability.
Forming into near-net geometries is accomplished through numerous creating techniques: uniaxial pressing for straightforward blocks, isostatic pressing for consistent density in intricate shapes, extrusion for long areas, and slide casting for intricate or huge elements.
Each method influences eco-friendly body thickness and homogeneity, which straight effect final residential or commercial properties after sintering.
For high-performance applications, progressed creating such as tape casting or gel-casting may be used to attain superior dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperatures between 1600 ° C and 1750 ° C makes it possible for diffusion-driven densification, where particle necks expand and pores diminish, leading to a completely dense ceramic body.
Environment control and exact thermal accounts are essential to protect against bloating, bending, or differential shrinkage.
Post-sintering operations include ruby grinding, washing, and polishing to attain tight tolerances and smooth surface coatings required in sealing, gliding, or optical applications.
Laser cutting and waterjet machining enable accurate personalization of block geometry without inducing thermal stress.
Surface treatments such as alumina layer or plasma spraying can further boost wear or deterioration resistance in customized solution conditions.
3. Useful Qualities and Performance Metrics
3.1 Thermal and Electric Behavior
Alumina ceramic blocks display modest thermal conductivity (20– 35 W/(m · K)), substantially greater than polymers and glasses, making it possible for effective warmth dissipation in electronic and thermal management systems.
They preserve structural integrity as much as 1600 ° C in oxidizing ambiences, with reduced thermal expansion (â 8 ppm/K), adding to outstanding thermal shock resistance when correctly designed.
Their high electrical resistivity (> 10 Âč⎠Ω · cm) and dielectric stamina (> 15 kV/mm) make them ideal electric insulators in high-voltage atmospheres, consisting of power transmission, switchgear, and vacuum systems.
Dielectric constant (Δᔣ â 9– 10) continues to be secure over a vast regularity range, sustaining use in RF and microwave applications.
These homes make it possible for alumina obstructs to function accurately in atmospheres where natural materials would break down or fail.
3.2 Chemical and Ecological Durability
Among the most important attributes of alumina blocks is their extraordinary resistance to chemical attack.
They are highly inert to acids (except hydrofluoric and warm phosphoric acids), alkalis (with some solubility in strong caustics at elevated temperature levels), and molten salts, making them suitable for chemical handling, semiconductor manufacture, and pollution control devices.
Their non-wetting actions with numerous liquified steels and slags permits usage in crucibles, thermocouple sheaths, and heater cellular linings.
In addition, alumina is non-toxic, biocompatible, and radiation-resistant, broadening its utility right into medical implants, nuclear shielding, and aerospace components.
Very little outgassing in vacuum environments better certifies it for ultra-high vacuum cleaner (UHV) systems in research and semiconductor production.
4. Industrial Applications and Technical Assimilation
4.1 Structural and Wear-Resistant Parts
Alumina ceramic blocks act as essential wear components in industries ranging from extracting to paper production.
They are used as linings in chutes, receptacles, and cyclones to withstand abrasion from slurries, powders, and granular materials, substantially expanding service life contrasted to steel.
In mechanical seals and bearings, alumina blocks supply reduced friction, high hardness, and rust resistance, decreasing maintenance and downtime.
Custom-shaped blocks are integrated into cutting tools, dies, and nozzles where dimensional stability and edge retention are paramount.
Their lightweight nature (thickness â 3.9 g/cm FOUR) additionally adds to power savings in relocating components.
4.2 Advanced Engineering and Arising Makes Use Of
Past standard roles, alumina blocks are progressively employed in sophisticated technical systems.
In electronics, they function as protecting substratums, warm sinks, and laser dental caries elements because of their thermal and dielectric residential or commercial properties.
In energy systems, they act as strong oxide fuel cell (SOFC) components, battery separators, and fusion activator plasma-facing materials.
Additive manufacturing of alumina by means of binder jetting or stereolithography is emerging, enabling complicated geometries previously unattainable with traditional creating.
Hybrid structures integrating alumina with metals or polymers via brazing or co-firing are being developed for multifunctional systems in aerospace and defense.
As material science advances, alumina ceramic blocks remain to progress from easy architectural elements right into active elements in high-performance, lasting design remedies.
In recap, alumina ceramic blocks stand for a foundational course of sophisticated ceramics, integrating durable mechanical performance with exceptional chemical and thermal stability.
Their adaptability throughout industrial, digital, and scientific domains highlights their long-lasting value in contemporary design and innovation advancement.
