1. Product Scientific Research and Structural Characteristic
1.1 Crystal Structure and Chemical Stability

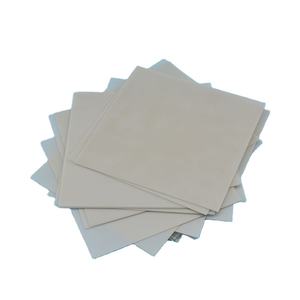

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, composed of alternating layers of aluminum and nitrogen atoms adhered through solid covalent interactions.
This robust atomic setup enhances AlN with phenomenal thermal stability, keeping structural integrity up to 2200 ° C in inert environments and standing up to decay under severe thermal cycling.
Unlike alumina (Al two O SIX), AlN is chemically inert to molten steels and numerous reactive gases, making it appropriate for extreme atmospheres such as semiconductor processing chambers and high-temperature heating systems.
Its high resistance to oxidation– forming only a slim safety Al ₂ O six layer at surface area upon direct exposure to air– guarantees long-lasting dependability without considerable deterioration of mass buildings.
Additionally, AlN shows exceptional electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric strength over 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Electronic Qualities
One of the most defining feature of light weight aluminum nitride is its exceptional thermal conductivity, commonly varying from 140 to 180 W/(m · K )for commercial-grade substrates– over five times more than that of alumina (≈ 30 W/(m · K)).
This performance originates from the low atomic mass of nitrogen and aluminum, incorporated with solid bonding and minimal point problems, which enable reliable phonon transportation with the lattice.
However, oxygen pollutants are specifically detrimental; even trace quantities (above 100 ppm) replacement for nitrogen websites, producing light weight aluminum vacancies and scattering phonons, thereby drastically minimizing thermal conductivity.
High-purity AlN powders synthesized using carbothermal decrease or direct nitridation are essential to achieve ideal warmth dissipation.
Regardless of being an electrical insulator, AlN’s piezoelectric and pyroelectric residential or commercial properties make it beneficial in sensing units and acoustic wave devices, while its vast bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency digital systems.
2. Construction Procedures and Production Challenges

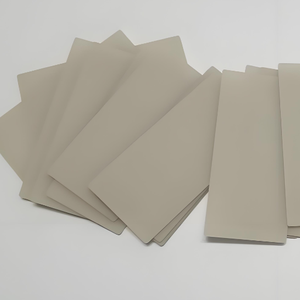

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Making high-performance AlN substrates starts with the synthesis of ultra-fine, high-purity powder, typically accomplished through responses such as Al Two O ₃ + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or straight nitridation of aluminum metal: 2Al + N ₂ → 2AlN.
The resulting powder must be carefully grated and doped with sintering help like Y ₂ O FIVE, CaO, or rare planet oxides to promote densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen environment.
These ingredients form short-term fluid phases that boost grain limit diffusion, allowing complete densification (> 99% theoretical density) while reducing oxygen contamination.
Post-sintering annealing in carbon-rich environments can better reduce oxygen content by eliminating intergranular oxides, thereby recovering peak thermal conductivity.
Accomplishing consistent microstructure with controlled grain size is vital to stabilize mechanical toughness, thermal efficiency, and manufacturability.
2.2 Substrate Shaping and Metallization
Once sintered, AlN porcelains are precision-ground and splashed to meet tight dimensional resistances needed for electronic product packaging, usually to micrometer-level monotony.
Through-hole exploration, laser cutting, and surface area patterning enable combination into multilayer packages and hybrid circuits.
A critical step in substratum manufacture is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) by means of procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper aluminum foils are bonded to AlN surfaces at raised temperatures in a regulated atmosphere, creating a strong user interface ideal for high-current applications.
Alternate methods like active metal brazing (AMB) make use of titanium-containing solders to boost attachment and thermal tiredness resistance, specifically under duplicated power cycling.
Proper interfacial engineering ensures reduced thermal resistance and high mechanical dependability in operating gadgets.
3. Performance Advantages in Electronic Systems
3.1 Thermal Management in Power Electronic Devices
AlN substrates excel in taking care of warm generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers made use of in electric lorries, renewable resource inverters, and telecoms framework.
Reliable warm extraction protects against localized hotspots, lowers thermal tension, and expands tool lifetime by mitigating electromigration and delamination threats.
Contrasted to traditional Al two O four substratums, AlN allows smaller bundle dimensions and higher power densities due to its exceptional thermal conductivity, allowing designers to push efficiency borders without jeopardizing dependability.
In LED lighting and laser diodes, where joint temperature directly impacts efficiency and color security, AlN substratums considerably improve luminous output and functional life-span.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) additionally very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical stress during thermal cycling.
3.2 Electrical and Mechanical Reliability
Past thermal efficiency, AlN provides low dielectric loss (tan δ < 0.0005) and secure permittivity (εᵣ ≈ 8.9) throughout a wide frequency array, making it optimal for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature avoids moisture access, getting rid of rust threats in humid atmospheres– a vital advantage over organic substrates.
Mechanically, AlN possesses high flexural toughness (300– 400 MPa) and solidity (HV ≈ 1200), making sure resilience throughout handling, assembly, and field procedure.
These attributes collectively contribute to improved system integrity, minimized failure rates, and lower total cost of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Systems
AlN ceramic substrates are currently conventional in innovative power modules for commercial motor drives, wind and solar inverters, and onboard chargers in electric and hybrid automobiles.
In aerospace and defense, they sustain radar systems, digital war units, and satellite interactions, where performance under extreme conditions is non-negotiable.
Medical imaging devices, including X-ray generators and MRI systems, also gain from AlN’s radiation resistance and signal honesty.
As electrification trends accelerate across transport and power markets, demand for AlN substrates continues to grow, driven by the requirement for small, efficient, and dependable power electronics.
4.2 Arising Integration and Lasting Advancement
Future innovations concentrate on incorporating AlN into three-dimensional packaging architectures, ingrained passive elements, and heterogeneous integration platforms integrating Si, SiC, and GaN devices.
Research into nanostructured AlN movies and single-crystal substratums aims to further increase thermal conductivity towards academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic devices.
Efforts to decrease manufacturing expenses through scalable powder synthesis, additive manufacturing of complicated ceramic frameworks, and recycling of scrap AlN are obtaining energy to boost sustainability.
In addition, modeling devices utilizing finite element evaluation (FEA) and artificial intelligence are being employed to maximize substrate design for details thermal and electric tons.
To conclude, aluminum nitride ceramic substratums represent a keystone innovation in modern-day electronic devices, distinctly linking the space in between electric insulation and outstanding thermal transmission.
Their duty in enabling high-efficiency, high-reliability power systems highlights their tactical significance in the recurring advancement of electronic and energy modern technologies.
