1. Composition and Structural Features of Fused Quartz
1.1 Amorphous Network and Thermal Stability

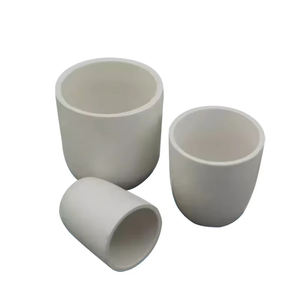

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, a synthetic form of silicon dioxide (SiO ₂) originated from the melting of natural quartz crystals at temperature levels going beyond 1700 ° C.
Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO ₄ tetrahedra, which imparts exceptional thermal shock resistance and dimensional stability under rapid temperature changes.
This disordered atomic framework protects against bosom along crystallographic planes, making fused silica less vulnerable to breaking throughout thermal biking compared to polycrystalline porcelains.
The material shows a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the most affordable among design products, allowing it to stand up to severe thermal slopes without fracturing– a vital residential property in semiconductor and solar cell manufacturing.
Fused silica also keeps excellent chemical inertness versus a lot of acids, molten steels, and slags, although it can be slowly etched by hydrofluoric acid and hot phosphoric acid.
Its high conditioning factor (~ 1600– 1730 ° C, relying on pureness and OH web content) allows sustained operation at raised temperature levels required for crystal growth and steel refining procedures.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is very based on chemical pureness, especially the concentration of metal pollutants such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace quantities (parts per million degree) of these pollutants can move right into liquified silicon throughout crystal growth, deteriorating the electrical residential or commercial properties of the resulting semiconductor product.
High-purity grades utilized in electronic devices manufacturing generally contain over 99.95% SiO TWO, with alkali steel oxides restricted to much less than 10 ppm and shift steels below 1 ppm.
Impurities stem from raw quartz feedstock or handling equipment and are reduced through cautious selection of mineral sources and purification techniques like acid leaching and flotation protection.
Furthermore, the hydroxyl (OH) material in integrated silica affects its thermomechanical actions; high-OH kinds use much better UV transmission but reduced thermal security, while low-OH variants are favored for high-temperature applications due to decreased bubble formation.

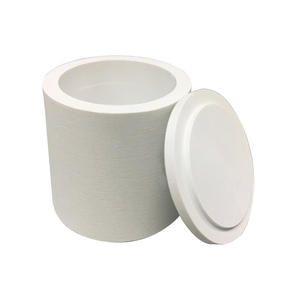

( Quartz Crucibles)
2. Production Refine and Microstructural Style
2.1 Electrofusion and Developing Methods
Quartz crucibles are primarily produced through electrofusion, a procedure in which high-purity quartz powder is fed right into a revolving graphite mold and mildew within an electrical arc heating system.
An electrical arc generated in between carbon electrodes thaws the quartz particles, which strengthen layer by layer to form a seamless, thick crucible shape.
This method creates a fine-grained, uniform microstructure with marginal bubbles and striae, essential for uniform heat circulation and mechanical stability.
Different methods such as plasma combination and fire blend are used for specialized applications requiring ultra-low contamination or specific wall thickness accounts.
After casting, the crucibles go through regulated cooling (annealing) to alleviate internal stress and anxieties and protect against spontaneous cracking throughout service.
Surface ending up, consisting of grinding and polishing, guarantees dimensional precision and reduces nucleation websites for unwanted condensation throughout use.
2.2 Crystalline Layer Engineering and Opacity Control
A defining function of contemporary quartz crucibles, particularly those used in directional solidification of multicrystalline silicon, is the engineered inner layer structure.
During production, the inner surface area is often dealt with to advertise the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon very first home heating.
This cristobalite layer acts as a diffusion barrier, decreasing direct communication in between liquified silicon and the underlying integrated silica, thus lessening oxygen and metallic contamination.
In addition, the visibility of this crystalline phase boosts opacity, boosting infrared radiation absorption and advertising even more consistent temperature level distribution within the melt.
Crucible designers meticulously stabilize the density and connection of this layer to stay clear of spalling or fracturing because of quantity modifications during phase transitions.
3. Useful Performance in High-Temperature Applications
3.1 Function in Silicon Crystal Growth Processes
Quartz crucibles are important in the manufacturing of monocrystalline and multicrystalline silicon, working as the main container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ procedure, a seed crystal is dipped right into molten silicon held in a quartz crucible and gradually pulled up while rotating, allowing single-crystal ingots to form.
Although the crucible does not directly contact the expanding crystal, communications in between molten silicon and SiO two walls bring about oxygen dissolution right into the thaw, which can impact service provider lifetime and mechanical stamina in finished wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the regulated air conditioning of thousands of kilograms of molten silicon right into block-shaped ingots.
Below, layers such as silicon nitride (Si two N FOUR) are related to the internal surface area to prevent adhesion and assist in very easy launch of the solidified silicon block after cooling.
3.2 Deterioration Systems and Service Life Limitations
Regardless of their robustness, quartz crucibles degrade throughout duplicated high-temperature cycles as a result of several related devices.
Thick flow or deformation takes place at long term exposure over 1400 ° C, causing wall surface thinning and loss of geometric stability.
Re-crystallization of merged silica into cristobalite produces inner stresses as a result of volume growth, possibly creating splits or spallation that pollute the melt.
Chemical disintegration occurs from reduction responses between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating volatile silicon monoxide that leaves and damages the crucible wall surface.
Bubble development, driven by trapped gases or OH teams, even more compromises architectural toughness and thermal conductivity.
These destruction pathways restrict the variety of reuse cycles and require precise procedure control to maximize crucible life-span and item return.
4. Arising Advancements and Technical Adaptations
4.1 Coatings and Composite Modifications
To enhance efficiency and sturdiness, advanced quartz crucibles integrate practical coatings and composite structures.
Silicon-based anti-sticking layers and doped silica coatings improve release attributes and decrease oxygen outgassing throughout melting.
Some suppliers integrate zirconia (ZrO TWO) fragments into the crucible wall to increase mechanical stamina and resistance to devitrification.
Research study is continuous into completely clear or gradient-structured crucibles created to enhance radiant heat transfer in next-generation solar heating system layouts.
4.2 Sustainability and Recycling Obstacles
With boosting demand from the semiconductor and photovoltaic or pv markets, sustainable use quartz crucibles has become a top priority.
Used crucibles polluted with silicon deposit are tough to recycle due to cross-contamination threats, resulting in significant waste generation.
Efforts focus on creating recyclable crucible linings, enhanced cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for second applications.
As tool effectiveness require ever-higher material purity, the function of quartz crucibles will certainly continue to evolve via technology in materials scientific research and procedure engineering.
In recap, quartz crucibles represent an important user interface between basic materials and high-performance electronic items.
Their special mix of pureness, thermal strength, and structural layout allows the construction of silicon-based innovations that power contemporary computing and renewable resource systems.
