Every component in a railway system must function well. This maintains the system risk-free and effective. Railway spreading components are really essential. They offer support, attach things, and conduct signals. Their top quality influences exactly how stable the train network is. When you buy these parts for South Africa, South America, or Russia, you need to locate great suppliers. To be successful, you need to recognize the regional technical rules. Below are 5 key quality requirements you should always adhere to.
1. Material Composition & Mechanical Qualities: The Foundation of High quality
The efficiency of cast iron depends upon its certain chemical composition and spreading procedure, and should fulfill the global or regional standards of the target audience. A trusted train spreading components supplier will provide full product traceability.
1.1 Structure Specifications: Must comply with requirements such as International Criteria (ISO), European Standards (EN), Russian GOST standards, or those generally utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of hazardous aspects like phosphorus and sulfur need to be strictly controlled.
1.2 Mechanical Qualities: Focus on tensile toughness, return stamina, hardness, and prolongation. For pliable iron, refer to criteria such as ISO 1083, EN 1563, or GOST 28394. Purchase ought to need distributors to provide material certificates and mechanical test records that follow the target market’s needs.

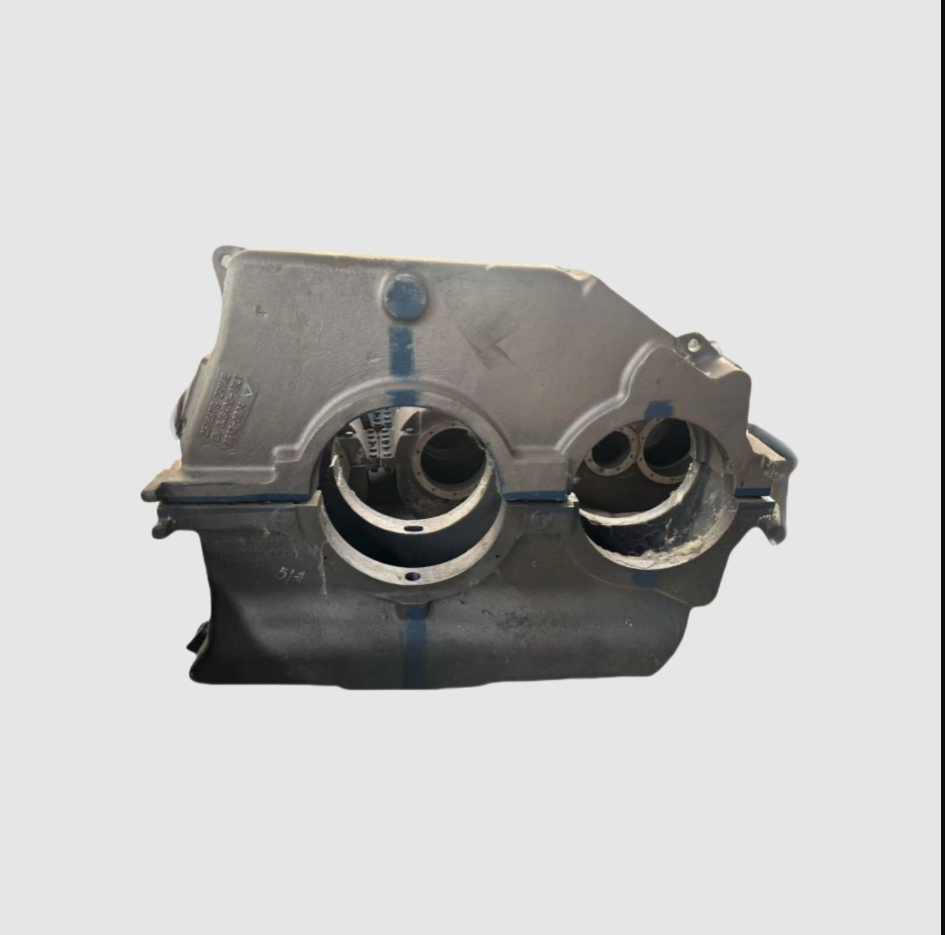

(Railway Cast Iron Gearbox)
2. Dimensional Precision & Resistance Control: Ensuring a “Perfect Fit”
Train jobs worldwide have strict demands for dimensional interchangeability; any variance can impact system combination. Accuracy is a mark of remarkable train spreading manufacturers.
2.1 Critical Dimensions: All user interface dimensions and placing opening placements for all train casting components need to be 100% checked.
2.2 Resistance Criteria: Need to comply with globally acknowledged criteria like ISO 2768, or details resistance demands explicitly agreed upon with the customer. For the Russian and CIS markets, special focus needs to be paid to adhering to pertinent resistance requirements in GOST 30893.
3. Restrictions on Casting Flaws: Removing Internal Hidden Dangers
The approval criteria for casting issues have to be plainly defined in contracts and based upon worldwide or regionally identified requirements. Leading train spreading parts maker procedures use strenuous non-destructive screening.
3.1 Surface area Problems: Criteria like ISO 8062 can be referenced for assessing casting surface area quality. Fractures, chilly shuts, and various other problems impacting utility are not permitted.
3.2 Internal Defects: For critical load-bearing railway casting components, non-destructive screening (e.g., ultrasonic, radiographic) ought to be executed according to criteria like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance degrees for issues.
4. Metallographic Structure & Internal High Quality
The tiny framework of the product is the crucial basis for evaluating whether its inner quality meets the criterion. This is a critical check for any type of specialist train casting components manufacturer.
4.1 Ductile Iron: The evaluation of nodularization rate should follow criteria such as ISO 945-1 or GOST 3443 to ensure its mechanical residential or commercial properties fulfill the requirements for usage under complicated working problems.
4.2 Graphite Morphology & Matrix Framework: The metallographic examination report is an important record for verifying the security of the manufacturing procedure and have to abide by the pertinent international or regional criteria.

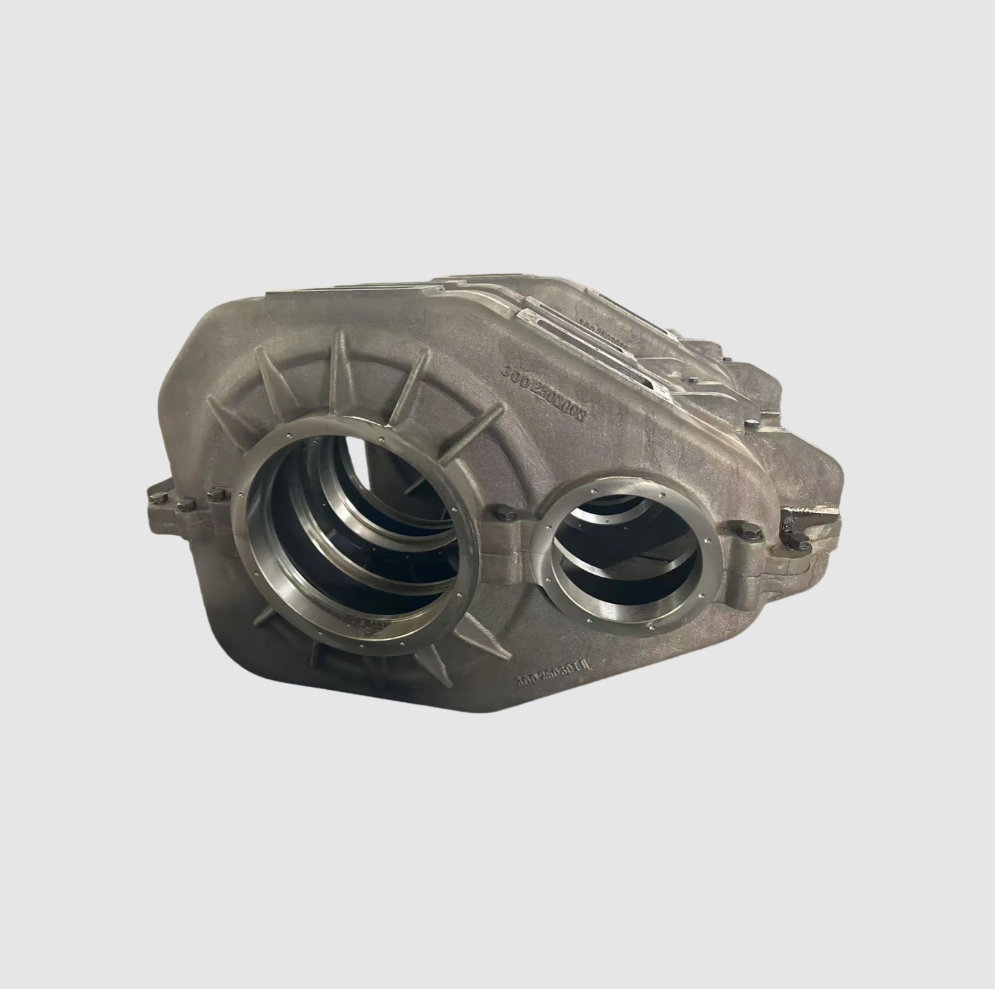

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Treatment & Surface Area High Quality: Withstanding Harsh Environments
Provided South Africa’s seaside high salinity, South America’s exotic rain forest humidity, and Russia’s severe cool and de-icing salts, anti-corrosion treatment for railway casting elements is critical.
5.1 Therapy Processes: Define the kind of anti-corrosion process, such as hot-dip galvanizing (ISO 1461), epoxy coating, and so on, and define crucial signs like layer density, bond ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Requirements: Should take note of certain needs of the target market, such as Russia’s GOST 9.307 anti-corrosion system accreditation, or South Africa’s SANS (South African National Requirement) criteria. A global railway spreading makers will certainly know with these varied demands.
Luoyang Fonyo Heavy Industries Co., Ltd. is a leading manufacturer of hefty commercial castings and elements, specializing in providing premium steel spreadings, consisting of carbon steel, high manganese steel, alloy steel, and heat-resistant steel spreadings. With an extensive service design incorporating layout, spreading, machining, and service, Fonyo makes sure that each product satisfies strenuous high quality and performance standards to please the requiring demands of different heavy markets.
If you are looking for a trusted supplier of , Luoyang Fonyo Heavy Industries Co., Ltd. is your ideal choice. Visit Fonyo’s official website (www.railwaypart.com) for more product information and technical support!
