1. Basic Make-up and Architectural Style of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Product Class

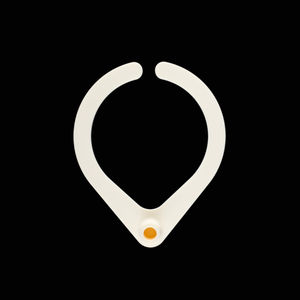

(Transparent Ceramics)
Quartz porcelains, additionally known as fused quartz or integrated silica ceramics, are advanced inorganic products originated from high-purity crystalline quartz (SiO TWO) that go through controlled melting and consolidation to create a thick, non-crystalline (amorphous) or partly crystalline ceramic framework.
Unlike conventional porcelains such as alumina or zirconia, which are polycrystalline and composed of multiple stages, quartz ceramics are predominantly made up of silicon dioxide in a network of tetrahedrally collaborated SiO ₄ devices, offering remarkable chemical purity– usually surpassing 99.9% SiO TWO.
The distinction in between integrated quartz and quartz ceramics depends on processing: while integrated quartz is usually a totally amorphous glass formed by rapid air conditioning of molten silica, quartz ceramics may involve regulated condensation (devitrification) or sintering of great quartz powders to achieve a fine-grained polycrystalline or glass-ceramic microstructure with enhanced mechanical effectiveness.
This hybrid strategy integrates the thermal and chemical security of merged silica with boosted fracture durability and dimensional security under mechanical load.
1.2 Thermal and Chemical Stability Systems
The outstanding efficiency of quartz ceramics in extreme settings stems from the solid covalent Si– O bonds that create a three-dimensional network with high bond power (~ 452 kJ/mol), conferring impressive resistance to thermal destruction and chemical attack.
These products display an extremely low coefficient of thermal expansion– roughly 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them extremely immune to thermal shock, a critical feature in applications entailing rapid temperature level biking.
They preserve structural integrity from cryogenic temperatures as much as 1200 ° C in air, and even greater in inert atmospheres, prior to softening starts around 1600 ° C.
Quartz ceramics are inert to most acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the SiO ₂ network, although they are prone to attack by hydrofluoric acid and solid alkalis at elevated temperature levels.
This chemical durability, combined with high electrical resistivity and ultraviolet (UV) openness, makes them ideal for usage in semiconductor processing, high-temperature heating systems, and optical systems subjected to rough problems.
2. Manufacturing Processes and Microstructural Control

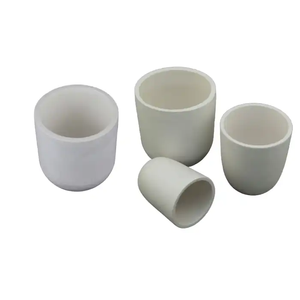

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz ceramics involves innovative thermal handling techniques made to preserve purity while achieving wanted density and microstructure.
One common approach is electric arc melting of high-purity quartz sand, followed by controlled cooling to form integrated quartz ingots, which can then be machined right into elements.
For sintered quartz ceramics, submicron quartz powders are compressed via isostatic pushing and sintered at temperatures in between 1100 ° C and 1400 ° C, commonly with marginal ingredients to advertise densification without inducing extreme grain growth or phase improvement.
A crucial obstacle in handling is preventing devitrification– the spontaneous condensation of metastable silica glass right into cristobalite or tridymite phases– which can jeopardize thermal shock resistance due to volume changes throughout stage transitions.
Producers utilize accurate temperature control, fast air conditioning cycles, and dopants such as boron or titanium to suppress undesirable formation and preserve a stable amorphous or fine-grained microstructure.
2.2 Additive Manufacturing and Near-Net-Shape Manufacture
Current advances in ceramic additive manufacturing (AM), specifically stereolithography (SHANTY TOWN) and binder jetting, have enabled the manufacture of complex quartz ceramic parts with high geometric precision.
In these processes, silica nanoparticles are put on hold in a photosensitive material or selectively bound layer-by-layer, complied with by debinding and high-temperature sintering to accomplish full densification.
This method decreases product waste and permits the development of intricate geometries– such as fluidic networks, optical dental caries, or warm exchanger aspects– that are tough or difficult to accomplish with traditional machining.
Post-processing methods, including chemical vapor seepage (CVI) or sol-gel finishing, are occasionally put on secure surface porosity and improve mechanical and ecological resilience.
These advancements are expanding the application extent of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip devices, and personalized high-temperature fixtures.
3. Practical Qualities and Performance in Extreme Environments
3.1 Optical Transparency and Dielectric Behavior
Quartz ceramics display one-of-a-kind optical properties, including high transmission in the ultraviolet, visible, and near-infrared range (from ~ 180 nm to 2500 nm), making them essential in UV lithography, laser systems, and space-based optics.
This openness occurs from the lack of electronic bandgap changes in the UV-visible array and marginal scattering as a result of homogeneity and reduced porosity.
On top of that, they possess exceptional dielectric homes, with a low dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, allowing their use as insulating components in high-frequency and high-power digital systems, such as radar waveguides and plasma reactors.
Their capacity to keep electrical insulation at elevated temperature levels even more improves integrity in demanding electric environments.
3.2 Mechanical Actions and Long-Term Sturdiness
Regardless of their high brittleness– an usual trait among porcelains– quartz ceramics demonstrate great mechanical toughness (flexural toughness up to 100 MPa) and excellent creep resistance at high temperatures.
Their solidity (around 5.5– 6.5 on the Mohs range) offers resistance to surface area abrasion, although care should be taken throughout dealing with to prevent damaging or split breeding from surface area defects.
Ecological resilience is another vital benefit: quartz ceramics do not outgas dramatically in vacuum cleaner, withstand radiation damages, and keep dimensional security over prolonged exposure to thermal biking and chemical environments.
This makes them recommended materials in semiconductor fabrication chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure need to be reduced.
4. Industrial, Scientific, and Emerging Technical Applications
4.1 Semiconductor and Photovoltaic Production Equipments
In the semiconductor sector, quartz ceramics are common in wafer handling tools, including heater tubes, bell containers, susceptors, and shower heads used in chemical vapor deposition (CVD) and plasma etching.
Their purity prevents metal contamination of silicon wafers, while their thermal stability guarantees uniform temperature circulation during high-temperature handling actions.
In photovoltaic or pv production, quartz parts are utilized in diffusion heating systems and annealing systems for solar cell manufacturing, where constant thermal profiles and chemical inertness are necessary for high yield and performance.
The need for larger wafers and greater throughput has driven the development of ultra-large quartz ceramic structures with improved homogeneity and decreased defect thickness.
4.2 Aerospace, Protection, and Quantum Technology Combination
Beyond industrial handling, quartz ceramics are employed in aerospace applications such as missile advice windows, infrared domes, and re-entry automobile elements as a result of their ability to stand up to severe thermal slopes and wind resistant stress.
In protection systems, their openness to radar and microwave regularities makes them appropriate for radomes and sensing unit real estates.
Much more recently, quartz porcelains have discovered functions in quantum modern technologies, where ultra-low thermal expansion and high vacuum cleaner compatibility are required for accuracy optical dental caries, atomic traps, and superconducting qubit enclosures.
Their ability to minimize thermal drift makes certain lengthy coherence times and high dimension accuracy in quantum computing and picking up platforms.
In recap, quartz ceramics stand for a course of high-performance products that link the void between conventional ceramics and specialty glasses.
Their unmatched combination of thermal stability, chemical inertness, optical transparency, and electric insulation allows technologies running at the limits of temperature level, purity, and accuracy.
As manufacturing strategies advance and require expands for materials capable of holding up against significantly severe conditions, quartz ceramics will remain to play a fundamental duty in advancing semiconductor, power, aerospace, and quantum systems.
