Boron Carbide Ceramics: Unveiling the Science, Feature, and Revolutionary Applications of an Ultra-Hard Advanced Product
1. Introduction to Boron Carbide: A Product at the Extremes
Boron carbide (B ₄ C) stands as one of one of the most exceptional artificial products understood to modern materials scientific research, differentiated by its setting amongst the hardest materials on Earth, went beyond just by diamond and cubic boron nitride.

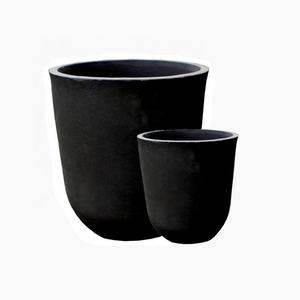

(Boron Carbide Ceramic)
First manufactured in the 19th century, boron carbide has actually advanced from a lab inquisitiveness right into a vital element in high-performance engineering systems, protection innovations, and nuclear applications.
Its distinct mix of extreme solidity, reduced density, high neutron absorption cross-section, and excellent chemical security makes it vital in environments where traditional products fall short.
This short article offers an extensive yet obtainable expedition of boron carbide porcelains, delving right into its atomic framework, synthesis approaches, mechanical and physical properties, and the wide range of advanced applications that take advantage of its outstanding features.
The objective is to bridge the space in between clinical understanding and functional application, offering visitors a deep, organized understanding right into how this remarkable ceramic material is shaping modern technology.
2. Atomic Framework and Essential Chemistry
2.1 Crystal Lattice and Bonding Characteristics
Boron carbide takes shape in a rhombohedral structure (space team R3m) with an intricate device cell that accommodates a variable stoichiometry, generally ranging from B ₄ C to B ₁₀. FIVE C.
The essential foundation of this framework are 12-atom icosahedra made up mostly of boron atoms, linked by three-atom linear chains that extend the crystal latticework.
The icosahedra are extremely stable clusters due to solid covalent bonding within the boron network, while the inter-icosahedral chains– usually consisting of C-B-C or B-B-B configurations– play a critical duty in determining the product’s mechanical and electronic buildings.
This one-of-a-kind architecture leads to a product with a high degree of covalent bonding (over 90%), which is directly in charge of its remarkable firmness and thermal stability.
The visibility of carbon in the chain sites enhances architectural integrity, however deviations from excellent stoichiometry can present issues that influence mechanical efficiency and sinterability.
(Boron Carbide Ceramic)
2.2 Compositional Irregularity and Flaw Chemistry
Unlike several porcelains with dealt with stoichiometry, boron carbide shows a wide homogeneity range, enabling considerable variant in boron-to-carbon proportion without disrupting the total crystal structure.
This adaptability makes it possible for customized buildings for certain applications, though it likewise introduces challenges in processing and efficiency consistency.
Issues such as carbon deficiency, boron jobs, and icosahedral distortions are common and can affect firmness, fracture strength, and electrical conductivity.
For instance, under-stoichiometric compositions (boron-rich) have a tendency to exhibit greater hardness yet decreased crack strength, while carbon-rich versions might reveal enhanced sinterability at the expense of firmness.
Comprehending and managing these flaws is a key focus in sophisticated boron carbide study, especially for maximizing performance in shield and nuclear applications.
3. Synthesis and Processing Techniques
3.1 Key Manufacturing Approaches
Boron carbide powder is primarily created with high-temperature carbothermal decrease, a process in which boric acid (H SIX BO SIX) or boron oxide (B ₂ O ₃) is reacted with carbon sources such as oil coke or charcoal in an electric arc heating system.
The reaction continues as follows:
B ₂ O TWO + 7C → 2B ₄ C + 6CO (gas)
This process occurs at temperature levels exceeding 2000 ° C, needing significant energy input.
The resulting crude B FOUR C is then grated and cleansed to eliminate recurring carbon and unreacted oxides.
Alternate approaches consist of magnesiothermic decrease, laser-assisted synthesis, and plasma arc synthesis, which supply better control over particle size and pureness but are generally limited to small or customized production.
3.2 Difficulties in Densification and Sintering
One of the most substantial difficulties in boron carbide ceramic manufacturing is attaining full densification as a result of its strong covalent bonding and low self-diffusion coefficient.
Standard pressureless sintering frequently results in porosity levels over 10%, severely compromising mechanical stamina and ballistic performance.
To conquer this, advanced densification techniques are utilized:
Warm Pushing (HP): Includes simultaneous application of warmth (normally 2000– 2200 ° C )and uniaxial stress (20– 50 MPa) in an inert environment, producing near-theoretical density.
Hot Isostatic Pressing (HIP): Uses high temperature and isotropic gas pressure (100– 200 MPa), eliminating interior pores and improving mechanical integrity.
Stimulate Plasma Sintering (SPS): Makes use of pulsed direct current to swiftly warm the powder compact, making it possible for densification at lower temperature levels and much shorter times, preserving great grain framework.
Ingredients such as carbon, silicon, or change metal borides are typically introduced to advertise grain limit diffusion and enhance sinterability, though they should be thoroughly controlled to avoid degrading solidity.
4. Mechanical and Physical Quality
4.1 Exceptional Solidity and Use Resistance
Boron carbide is renowned for its Vickers hardness, normally varying from 30 to 35 GPa, putting it among the hardest known products.
This extreme solidity converts right into superior resistance to unpleasant wear, making B FOUR C optimal for applications such as sandblasting nozzles, cutting tools, and put on plates in mining and drilling tools.
The wear mechanism in boron carbide includes microfracture and grain pull-out as opposed to plastic contortion, a feature of breakable ceramics.
Nonetheless, its reduced crack durability (typically 2.5– 3.5 MPa · m 1ST / TWO) makes it susceptible to break breeding under influence loading, requiring careful design in vibrant applications.
4.2 Reduced Density and High Details Toughness
With a thickness of roughly 2.52 g/cm SIX, boron carbide is just one of the lightest structural porcelains available, providing a considerable advantage in weight-sensitive applications.
This low density, integrated with high compressive strength (over 4 Grade point average), causes an outstanding details strength (strength-to-density proportion), critical for aerospace and protection systems where reducing mass is extremely important.
As an example, in individual and automobile armor, B FOUR C offers premium protection per unit weight contrasted to steel or alumina, enabling lighter, much more mobile protective systems.
4.3 Thermal and Chemical Security
Boron carbide exhibits outstanding thermal stability, keeping its mechanical residential properties as much as 1000 ° C in inert ambiences.
It has a high melting factor of around 2450 ° C and a low thermal growth coefficient (~ 5.6 × 10 ⁻⁶/ K), adding to great thermal shock resistance.
Chemically, it is very immune to acids (except oxidizing acids like HNO ₃) and molten metals, making it appropriate for use in harsh chemical environments and atomic power plants.
However, oxidation becomes substantial above 500 ° C in air, forming boric oxide and carbon dioxide, which can break down surface area integrity over time.
Safety finishings or environmental control are often called for in high-temperature oxidizing problems.
5. Trick Applications and Technical Influence
5.1 Ballistic Security and Shield Systems
Boron carbide is a foundation product in contemporary light-weight armor due to its exceptional combination of solidity and reduced density.
It is extensively made use of in:
Ceramic plates for body armor (Degree III and IV security).
Automobile armor for armed forces and police applications.
Airplane and helicopter cockpit security.
In composite shield systems, B ₄ C ceramic tiles are usually backed by fiber-reinforced polymers (e.g., Kevlar or UHMWPE) to absorb recurring kinetic power after the ceramic layer cracks the projectile.
In spite of its high solidity, B ₄ C can go through “amorphization” under high-velocity influence, a sensation that limits its performance against really high-energy dangers, prompting continuous research right into composite modifications and hybrid porcelains.
5.2 Nuclear Engineering and Neutron Absorption
One of boron carbide’s most vital functions remains in nuclear reactor control and safety systems.
As a result of the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons), B FOUR C is made use of in:
Control poles for pressurized water activators (PWRs) and boiling water reactors (BWRs).
Neutron shielding parts.
Emergency situation closure systems.
Its capacity to absorb neutrons without considerable swelling or deterioration under irradiation makes it a favored product in nuclear settings.
Nevertheless, helium gas generation from the ¹⁰ B(n, α)seven Li reaction can lead to interior stress buildup and microcracking in time, necessitating cautious style and tracking in long-lasting applications.
5.3 Industrial and Wear-Resistant Elements
Beyond protection and nuclear markets, boron carbide discovers extensive usage in commercial applications needing severe wear resistance:
Nozzles for rough waterjet cutting and sandblasting.
Liners for pumps and shutoffs taking care of harsh slurries.
Reducing tools for non-ferrous products.
Its chemical inertness and thermal security permit it to execute dependably in aggressive chemical processing settings where metal devices would wear away rapidly.
6. Future Leads and Research Study Frontiers
The future of boron carbide porcelains lies in overcoming its fundamental restrictions– especially low crack toughness and oxidation resistance– via advanced composite style and nanostructuring.
Existing study instructions include:
Growth of B FOUR C-SiC, B ₄ C-TiB ₂, and B ₄ C-CNT (carbon nanotube) composites to enhance strength and thermal conductivity.
Surface alteration and finishing technologies to improve oxidation resistance.
Additive production (3D printing) of complicated B FOUR C components using binder jetting and SPS techniques.
As materials science continues to advance, boron carbide is poised to play an also better role in next-generation innovations, from hypersonic lorry parts to advanced nuclear combination activators.
Finally, boron carbide ceramics stand for a peak of crafted material performance, integrating extreme hardness, reduced density, and distinct nuclear residential properties in a solitary substance.
With continual development in synthesis, handling, and application, this exceptional material continues to press the boundaries of what is feasible in high-performance engineering.
