1. Crystal Framework and Layered Anisotropy
1.1 The 2H and 1T Polymorphs: Structural and Digital Duality

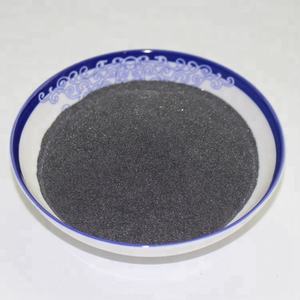

(Molybdenum Disulfide)
Molybdenum disulfide (MoS TWO) is a split change steel dichalcogenide (TMD) with a chemical formula including one molybdenum atom sandwiched between two sulfur atoms in a trigonal prismatic sychronisation, forming covalently bonded S– Mo– S sheets.
These private monolayers are piled vertically and held with each other by weak van der Waals pressures, making it possible for easy interlayer shear and peeling down to atomically slim two-dimensional (2D) crystals– a structural function main to its varied functional duties.
MoS two exists in multiple polymorphic kinds, the most thermodynamically steady being the semiconducting 2H stage (hexagonal proportion), where each layer displays a direct bandgap of ~ 1.8 eV in monolayer type that transitions to an indirect bandgap (~ 1.3 eV) in bulk, a sensation crucial for optoelectronic applications.
In contrast, the metastable 1T stage (tetragonal symmetry) embraces an octahedral sychronisation and behaves as a metal conductor as a result of electron donation from the sulfur atoms, allowing applications in electrocatalysis and conductive compounds.
Phase shifts in between 2H and 1T can be generated chemically, electrochemically, or through pressure design, supplying a tunable platform for developing multifunctional tools.
The capacity to support and pattern these stages spatially within a single flake opens up pathways for in-plane heterostructures with distinct electronic domains.
1.2 Defects, Doping, and Edge States
The performance of MoS two in catalytic and digital applications is very conscious atomic-scale defects and dopants.
Inherent point flaws such as sulfur jobs function as electron donors, enhancing n-type conductivity and serving as energetic sites for hydrogen evolution responses (HER) in water splitting.
Grain limits and line issues can either hinder charge transport or develop local conductive paths, depending on their atomic arrangement.
Managed doping with change steels (e.g., Re, Nb) or chalcogens (e.g., Se) permits fine-tuning of the band structure, provider concentration, and spin-orbit coupling impacts.
Especially, the edges of MoS ₂ nanosheets, particularly the metallic Mo-terminated (10– 10) sides, show significantly greater catalytic activity than the inert basal plane, motivating the design of nanostructured stimulants with made the most of edge exposure.
( Molybdenum Disulfide)
These defect-engineered systems exemplify just how atomic-level manipulation can transform a normally occurring mineral right into a high-performance practical material.
2. Synthesis and Nanofabrication Methods
2.1 Mass and Thin-Film Production Approaches
Natural molybdenite, the mineral form of MoS TWO, has actually been utilized for decades as a strong lube, however contemporary applications demand high-purity, structurally regulated synthetic forms.
Chemical vapor deposition (CVD) is the leading technique for creating large-area, high-crystallinity monolayer and few-layer MoS ₂ films on substrates such as SiO TWO/ Si, sapphire, or flexible polymers.
In CVD, molybdenum and sulfur precursors (e.g., MoO five and S powder) are evaporated at heats (700– 1000 ° C )under controlled atmospheres, allowing layer-by-layer growth with tunable domain name size and alignment.
Mechanical exfoliation (“scotch tape approach”) continues to be a criteria for research-grade examples, yielding ultra-clean monolayers with minimal defects, though it lacks scalability.
Liquid-phase exfoliation, including sonication or shear mixing of bulk crystals in solvents or surfactant services, generates colloidal diffusions of few-layer nanosheets ideal for layers, compounds, and ink formulas.
2.2 Heterostructure Combination and Device Pattern
Truth capacity of MoS ₂ arises when incorporated right into vertical or side heterostructures with other 2D products such as graphene, hexagonal boron nitride (h-BN), or WSe ₂.
These van der Waals heterostructures allow the style of atomically accurate devices, including tunneling transistors, photodetectors, and light-emitting diodes (LEDs), where interlayer cost and energy transfer can be crafted.
Lithographic patterning and etching techniques enable the fabrication of nanoribbons, quantum dots, and field-effect transistors (FETs) with network lengths to tens of nanometers.
Dielectric encapsulation with h-BN secures MoS ₂ from environmental deterioration and reduces cost spreading, significantly improving carrier movement and device security.
These manufacture breakthroughs are necessary for transitioning MoS two from lab curiosity to viable component in next-generation nanoelectronics.
3. Functional Properties and Physical Mechanisms
3.1 Tribological Behavior and Strong Lubrication
Among the oldest and most enduring applications of MoS ₂ is as a completely dry strong lube in severe atmospheres where fluid oils fail– such as vacuum, high temperatures, or cryogenic conditions.
The reduced interlayer shear strength of the van der Waals void enables easy sliding between S– Mo– S layers, resulting in a coefficient of friction as reduced as 0.03– 0.06 under ideal conditions.
Its performance is even more improved by strong attachment to steel surfaces and resistance to oxidation approximately ~ 350 ° C in air, past which MoO two development increases wear.
MoS ₂ is widely made use of in aerospace mechanisms, air pump, and firearm components, typically applied as a coating using burnishing, sputtering, or composite unification right into polymer matrices.
Current research studies show that moisture can deteriorate lubricity by boosting interlayer attachment, triggering research into hydrophobic layers or hybrid lubes for improved environmental security.
3.2 Digital and Optoelectronic Feedback
As a direct-gap semiconductor in monolayer kind, MoS two exhibits strong light-matter interaction, with absorption coefficients surpassing 10 ⁵ cm ⁻¹ and high quantum return in photoluminescence.
This makes it excellent for ultrathin photodetectors with rapid action times and broadband level of sensitivity, from visible to near-infrared wavelengths.
Field-effect transistors based upon monolayer MoS ₂ show on/off proportions > 10 eight and carrier flexibilities up to 500 cm TWO/ V · s in put on hold examples, though substrate communications normally restrict useful values to 1– 20 centimeters ²/ V · s.
Spin-valley combining, a repercussion of strong spin-orbit communication and broken inversion balance, enables valleytronics– an unique standard for details inscribing using the valley degree of freedom in momentum room.
These quantum phenomena placement MoS ₂ as a candidate for low-power reasoning, memory, and quantum computer aspects.
4. Applications in Power, Catalysis, and Arising Technologies
4.1 Electrocatalysis for Hydrogen Development Reaction (HER)
MoS two has actually become an encouraging non-precious alternative to platinum in the hydrogen advancement reaction (HER), a vital process in water electrolysis for eco-friendly hydrogen production.
While the basal aircraft is catalytically inert, edge websites and sulfur vacancies show near-optimal hydrogen adsorption totally free energy (ΔG_H * ≈ 0), similar to Pt.
Nanostructuring techniques– such as developing vertically straightened nanosheets, defect-rich movies, or doped crossbreeds with Ni or Co– take full advantage of active site thickness and electrical conductivity.
When integrated right into electrodes with conductive supports like carbon nanotubes or graphene, MoS ₂ accomplishes high existing densities and long-lasting security under acidic or neutral conditions.
More enhancement is accomplished by supporting the metal 1T stage, which boosts intrinsic conductivity and reveals additional energetic sites.
4.2 Flexible Electronics, Sensors, and Quantum Devices
The mechanical flexibility, openness, and high surface-to-volume proportion of MoS ₂ make it perfect for flexible and wearable electronics.
Transistors, reasoning circuits, and memory tools have been demonstrated on plastic substratums, allowing flexible displays, health and wellness screens, and IoT sensors.
MoS ₂-based gas sensors display high level of sensitivity to NO TWO, NH FOUR, and H TWO O as a result of charge transfer upon molecular adsorption, with feedback times in the sub-second range.
In quantum innovations, MoS ₂ hosts localized excitons and trions at cryogenic temperatures, and strain-induced pseudomagnetic fields can catch carriers, enabling single-photon emitters and quantum dots.
These advancements highlight MoS two not only as a practical product however as a platform for checking out basic physics in minimized measurements.
In summary, molybdenum disulfide exemplifies the convergence of classical materials science and quantum design.
From its old function as a lubricant to its modern-day deployment in atomically slim electronic devices and energy systems, MoS two continues to redefine the boundaries of what is possible in nanoscale materials layout.
As synthesis, characterization, and integration methods development, its influence across science and modern technology is positioned to expand even additionally.
